L9680TR - STMicroelectronics

Description: Automotive advanced airbag for mid/high end applications and cut-off battery IC

Download L9680TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L9680TR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

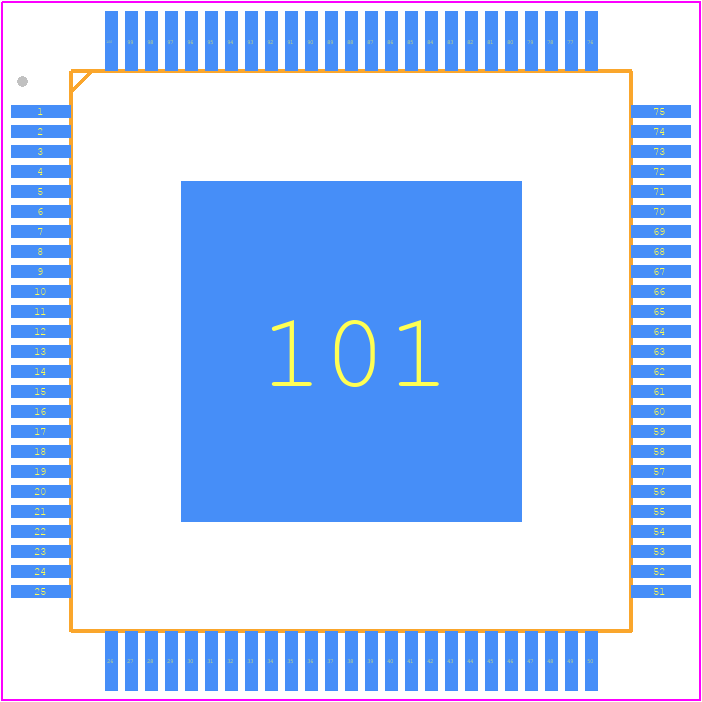

L9680TR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP100 (14x14x1.4)
click to zoom
3D Models
L9680TR - STMicroelectronics - 3D model - Quad Flat Packages - TQFP100 (14x14x1.4)
click to zoom

L9680TR Details

  • Manufacturer Part Number:

    L9680TR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    14 X 14 MM, 1.40 MM HEIGHT, ROHS COMPLIANT, TQFP-100

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    95 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    14 mm

L9680TR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L9680TR involves keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the traces between the IC and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with a value between 1uF to 10uF is recommended. The output capacitor should have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with a value between 10uF to 22uF is recommended.
  • The L9680TR is rated for an ambient temperature range of -40°C to 150°C. However, the device can operate up to 125°C with a derated output current.
  • The L9680TR has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, additional protection can be achieved by using external components such as a voltage supervisor or a reset IC to monitor the input voltage and reset the device if it falls outside the recommended range.
  • The recommended input voltage range for the L9680TR is 4.5V to 18V. However, the device can operate with an input voltage as low as 3.5V, but with reduced performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L9680TR Overview

Use the download button to access the L9680TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L9680, or try a keyword search, such as Other Consumer ICs
