L9903 - STMicroelectronics

Description: ISO9141 Motor Bridge Controller

Download L9903 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

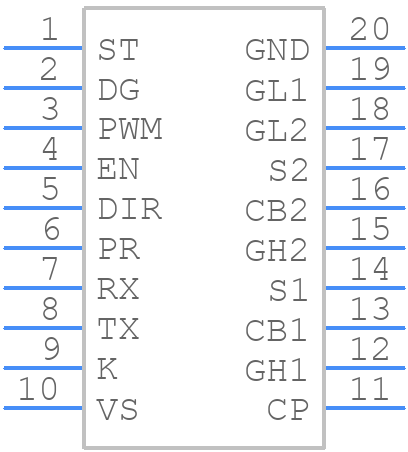

Symbol
L9903 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L9903 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-20 mechanical data
click to zoom
3D Models
L9903 - STMicroelectronics - 3D model - Small Outline Packages - SO-20 mechanical data
click to zoom

L9903 Details

  • Manufacturer Part Number:

    L9903

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-20

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max (Isup):

    13 mA

  • Supply Voltage-Max (Vsup):

    20 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L9903 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4553, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The selection of external components such as resistors, capacitors, and inductors depends on the specific application and operating conditions. STMicroelectronics provides a component selection guide in the datasheet, and additional guidance can be found in the application note AN4553.
  • The L9903 is rated for operation from -40°C to 150°C, but the maximum operating temperature range may vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and application notes for more information.
  • STMicroelectronics provides a troubleshooting guide in the application note AN4553, which covers common issues such as overheating, oscillations, and output voltage regulation. Additionally, the datasheet provides guidance on fault detection and protection features.
  • Yes, the L9903 is compatible with lead-free soldering. STMicroelectronics provides guidance on lead-free soldering in the datasheet and application notes.
