L99ASC03 - STMicroelectronics

Description: Brushless / sensorless 3-phase motor pre-driver for automotive applications

Download L99ASC03 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

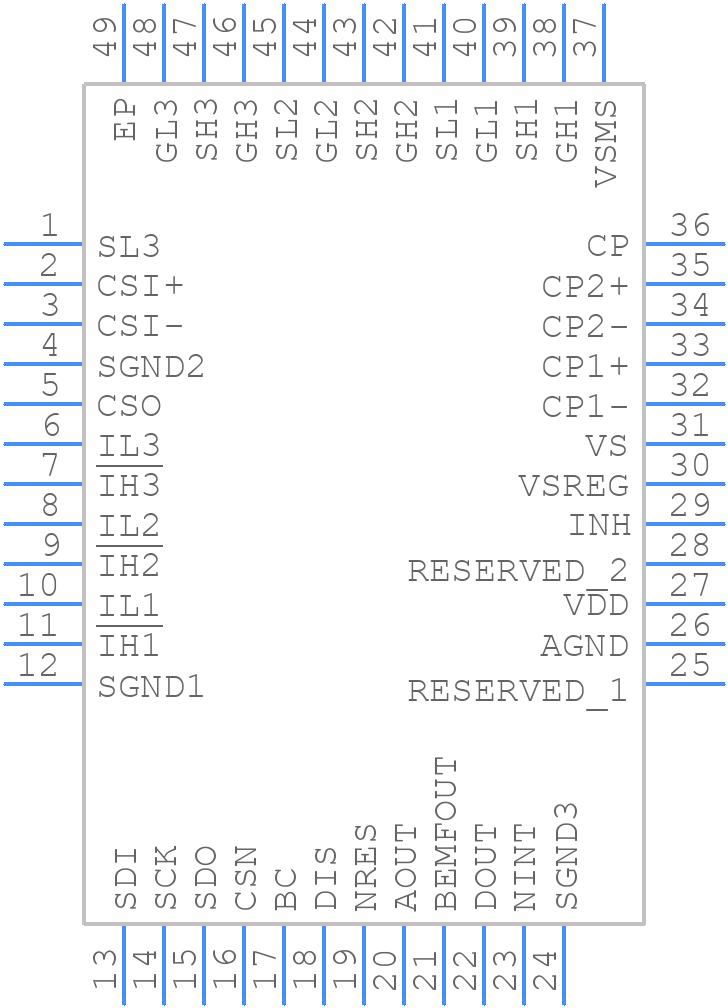

Symbol
L99ASC03 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99ASC03 - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP 48 7x7x1.0_2022
click to zoom
3D Models
L99ASC03 - STMicroelectronics - 3D model - Quad Flat Packages - TQFP 48 7x7x1.0_2022
click to zoom

L99ASC03 Details

  • Manufacturer Part Number:

    L99ASC03

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    7 X 7 MM, 1 MM HEIGHT, ROHS COMPLIANT, TQFP-48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Output Current-Max:

    0.3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

L99ASC03 Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management.
  • The L99ASC03 can be configured for different automotive bus protocols such as CAN, LIN, and SAE J1850 using the SPI interface and the STMicroelectronics-provided software development kit (SDK).
  • The L99ASC03 has an operating temperature range of -40°C to 125°C, making it suitable for use in harsh automotive environments.
  • STMicroelectronics provides guidelines for EMC design and testing in the application note AN5323, which includes recommendations for PCB layout, component selection, and shielding.
  • Yes, the L99ASC03 is designed to meet the requirements of safety-critical applications, including ISO 26262, and has been certified to ASIL-D, the highest level of safety integrity.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99ASC03 Overview

Use the download button to access the L99ASC03 schematic symbol, PCB footprint, and 3D model.
