L99DZ200G - STMicroelectronics

Description: Automotive Front Door device with LIN and HS-CAN providing Dual H-bridge driving 64-LQFP (10x10), 11mA, 28V, -40°C ~ 175°C.

Download L99DZ200G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L99DZ200G - STMicroelectronics - PCB symbol
click to zoom

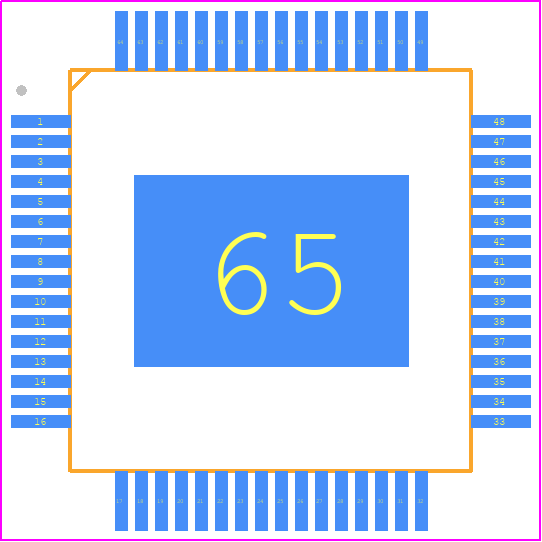

PCB Footprints
L99DZ200G - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-64 _2022
click to zoom
3D Models
L99DZ200G - STMicroelectronics - 3D model - Quad Flat Packages - LQFP-64 _2022
click to zoom

L99DZ200G Details

  • Manufacturer Part Number:

    L99DZ200G

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    52 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6

  • Analog IC - Other Type:

    DOOR MODULE DRIVERS

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    15 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

L99DZ200G Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The L99DZ200G is designed to support various battery chemistries, including Li-ion, Li-polymer, and Li-iron phosphate. Configuration is done through the device's registers, which can be accessed through the I2C interface. Refer to the datasheet and application notes for specific configuration settings for each battery chemistry.
  • The L99DZ200G can handle charging currents up to 2A, but the maximum current is dependent on the specific application and battery configuration. It's recommended to consult the datasheet and application notes for guidance on selecting the appropriate charging current for your specific use case.
  • The L99DZ200G has built-in overcharge protection, which is enabled by default. When the battery voltage reaches the overcharge threshold (typically 4.2V), the device will automatically switch to trickle charge mode to prevent overcharging. The overcharge threshold can be adjusted through the device's registers.
  • The L99DZ200G is rated for operation up to 85°C, but it's recommended to consult the datasheet and application notes for guidance on thermal management and derating for high-temperature applications. Additionally, STMicroelectronics provides a thermal model for the device, which can be used to simulate thermal performance in your specific application.
