L99DZ300GTR - STMicroelectronics

Description: Automotive front door device with CAN FD and LIN

Download L99DZ300GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
L99DZ300GTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

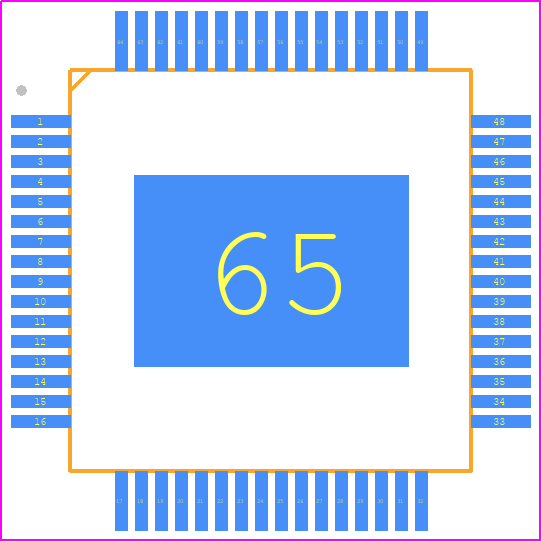

L99DZ300GTR - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP-64
click to zoom
3D Models
L99DZ300GTR - STMicroelectronics - 3D model - Quad Flat Packages - LQFP-64
click to zoom

L99DZ300GTR Details

  • Manufacturer Part Number:

    L99DZ300GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LQFP-64

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    9

  • Analog IC - Other Type:

    DOOR MODULE DRIVERS

  • JESD-30 Code:

    S-PQFP-G64

  • Length:

    10 mm

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    7.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP64,.47SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    10 mm

L99DZ300GTR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for the analog and digital grounds.
  • Use a high-quality, low-ESR capacitor (e.g., 10uF) close to the device's power pins. Ensure the power supply voltage is within the recommended range (3.3V to 5.5V) and that the device is properly decoupled.
  • The recommended clock frequency for the SPI interface is up to 10 MHz, but it can operate up to 20 MHz with proper signal integrity and layout considerations.
  • Use a thermal pad or a heat sink to dissipate heat. Ensure good airflow around the device, and avoid blocking the thermal pad or heat sink. The device's junction temperature should not exceed 150°C.
  • Use the device's built-in bootloader or a third-party bootloader. Ensure the firmware update process is done through a secure and reliable communication channel, such as a secure socket or a trusted interface.
