L99H01XP - STMicroelectronics

Description: Motor / Motion / Ignition Controllers & Drivers MOTOR BRIDGE DRIVER 4 AUTOMOTIVE APPS

Download L99H01XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

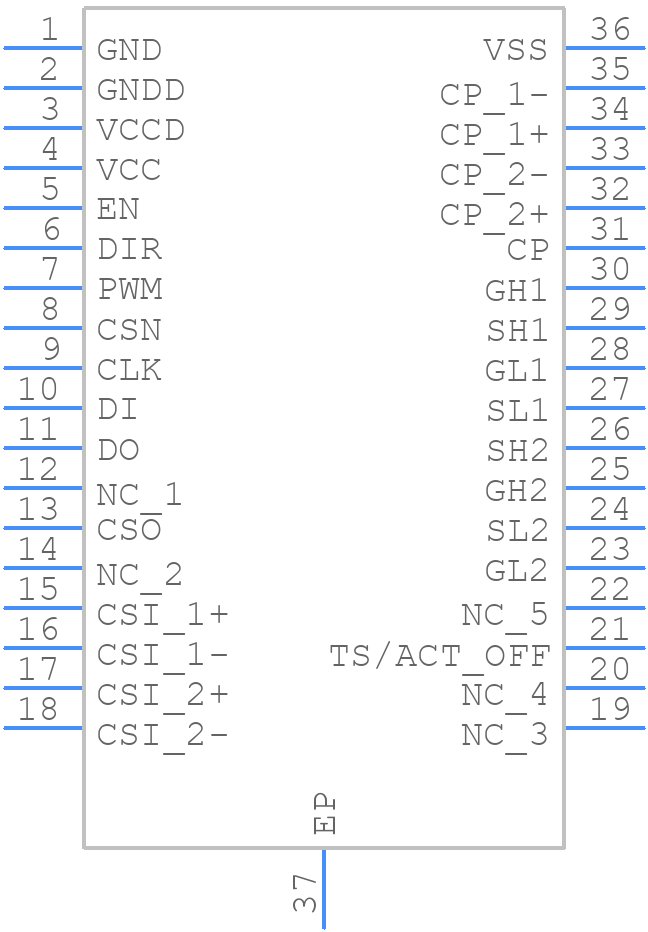

L99H01XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99H01XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO36_4
click to zoom
3D Models
L99H01XP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO36_4
click to zoom

L99H01XP Details

  • Manufacturer Part Number:

    L99H01XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L99H01XP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4846, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The L99H01XP is a highly configurable device that supports various vehicle protocols such as SAE J1850, ISO 9141-2, and ISO 15765-4. Configuration is done through the SPI interface, and STMicroelectronics provides a software development kit (SDK) and documentation to help with protocol configuration and customization.
  • The maximum cable length supported by the L99H01XP depends on the specific vehicle protocol and the cable characteristics. As a general guideline, STMicroelectronics recommends keeping the cable length below 10 meters for SAE J1850 and ISO 9141-2 protocols, and below 40 meters for ISO 15765-4 protocol. However, it's essential to perform signal integrity analysis and testing to ensure reliable communication over the desired cable length.
  • The L99H01XP has built-in bus fault detection capabilities, including voltage, current, and protocol-specific fault detection. In case of a fault, the device can be configured to enter a fault mode, and the host microcontroller can be notified through the SPI interface. Recovery from a fault mode typically involves resetting the device and re-initializing the communication protocol. STMicroelectronics provides guidelines and example code for fault handling and recovery in the device's documentation and SDK.
  • The L99H01XP is a high-power device that requires proper thermal management to ensure reliable operation. STMicroelectronics recommends using a heat sink or thermal pad to dissipate heat, and provides thermal resistance and power dissipation data in the datasheet. Additionally, the device has a built-in thermal shutdown feature that can be configured to prevent overheating and damage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99H01XP Overview

Use the download button to access the L99H01XP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99H0, or try a keyword search, such as Motion Control Electronics
