L99H01XPTR - STMicroelectronics

Description: Motor bridge driver for automotive applications

Download L99H01XPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

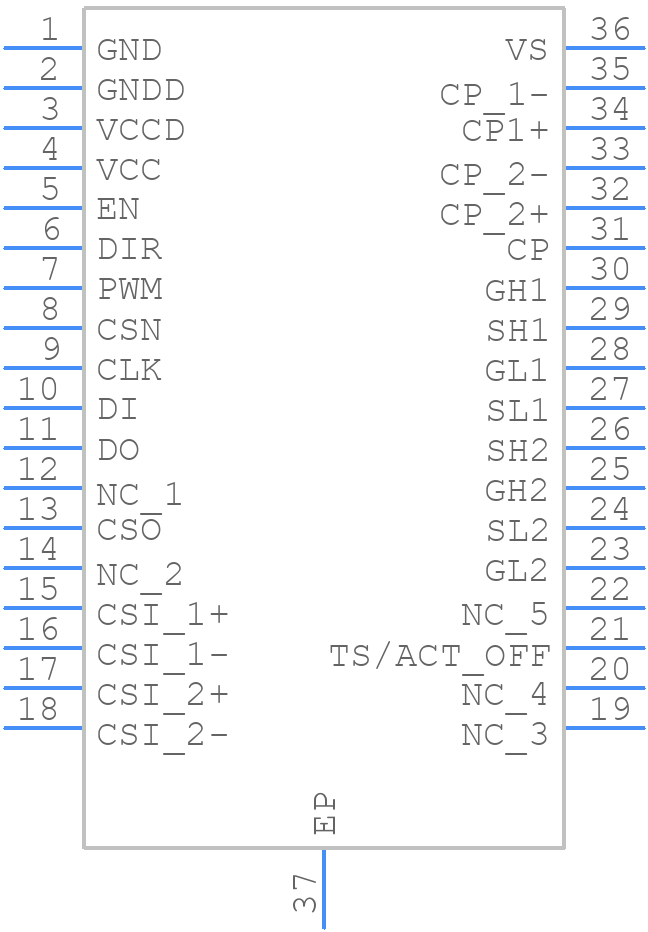

Symbol
L99H01XPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99H01XPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - --0PowerSSO-36 EPD_2020
click to zoom
3D Models
L99H01XPTR - STMicroelectronics - 3D model - Small Outline Packages - --0PowerSSO-36 EPD_2020
click to zoom

L99H01XPTR Details

  • Manufacturer Part Number:

    L99H01XPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L99H01XPTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the L99H01XPTR involves placing the device close to the battery, using a solid ground plane, and keeping the power traces short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The values of the external resistors and capacitors depend on the specific application and the desired performance. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the results of simulations and experiments.
  • The L99H01XPTR can operate over a temperature range of -40°C to 125°C, but the maximum operating temperature range depends on the specific application and the desired performance. It's recommended to consult the datasheet and the application notes for more information.
  • To ensure EMC with the L99H01XPTR, it's recommended to follow good PCB design practices, such as using a solid ground plane, keeping the power traces short and wide, and using shielding and filtering as needed. It's also recommended to consult the application notes and the EMC guidelines for the specific industry and region.
  • The L99H01XPTR is a battery charger IC that is typically used in automotive applications, such as charging systems for electric and hybrid vehicles, as well as in industrial and consumer applications that require high-power charging.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99H01XPTR Overview

Use the download button to access the L99H01XPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99H0, or try a keyword search, such as Motion Control Electronics
