Part Image

L99PM60JTR - STMicroelectronics

Description: Power management IC with LIN transceiver

Download L99PM60JTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

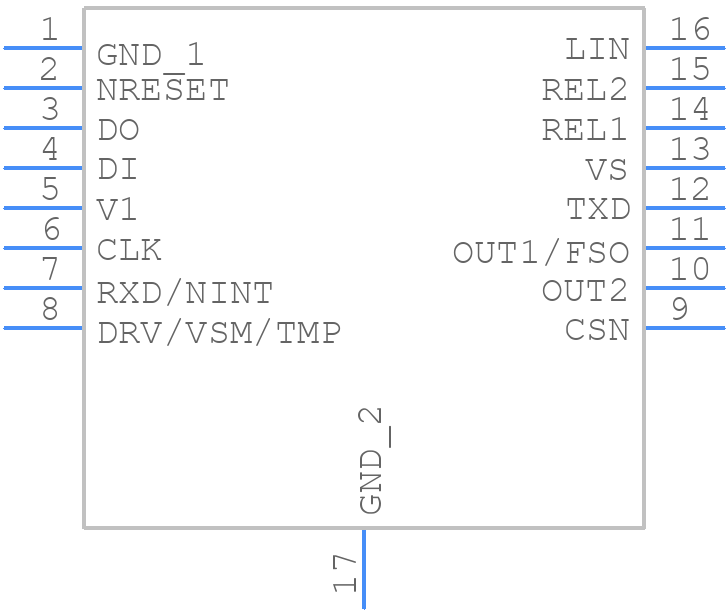

L99PM60JTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM60JTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-16.
click to zoom
3D Models
L99PM60JTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-16.
click to zoom

L99PM60JTR Details

  • Manufacturer Part Number:

    L99PM60JTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SSOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Morocco

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SSOP16,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

L99PM60JTR Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a pull-up resistor on the CS pin, ensure proper signal termination, and maintain a clock frequency within the recommended range (up to 1 MHz). Also, ensure that the SPI clock is synchronized with the device's internal clock.
  • A 10uF to 22uF ceramic capacitor is recommended to filter out noise and ensure stable operation. The capacitor should be placed as close as possible to the VIN pin.
  • The L99PM60JTR has built-in OVP and UVP features. Ensure that the input voltage is within the recommended range (7V to 40V) and use external components (e.g., TVS diodes) to protect against voltage surges or spikes.
  • The recommended operating temperature range is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and lifespan.
