L99PM62GXP - STMicroelectronics

Description: Power Management IC with LIN and High Speed CAN

Download L99PM62GXP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

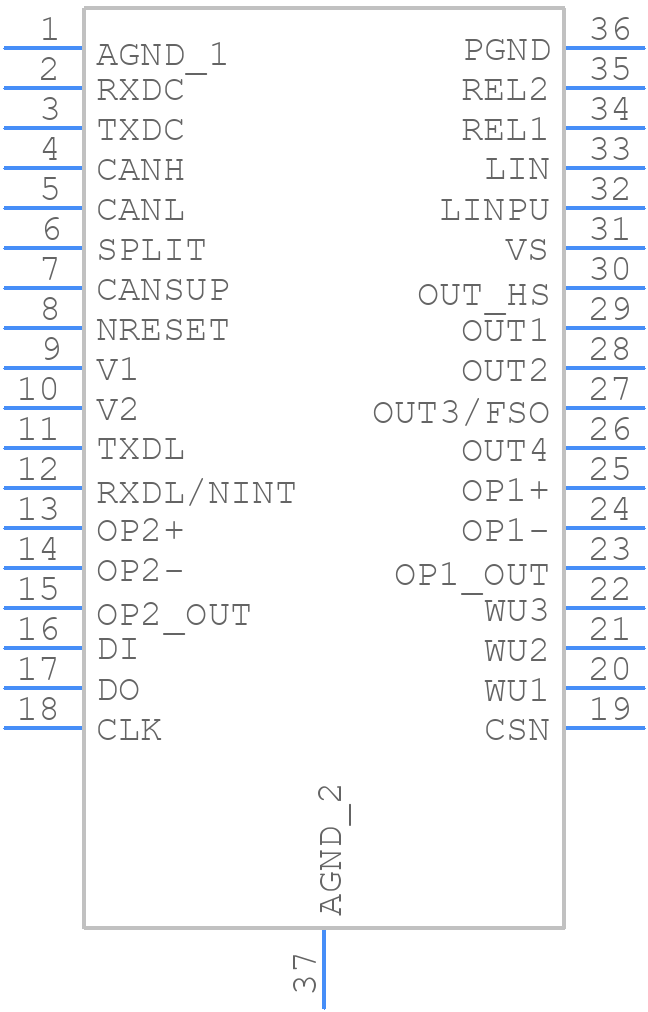

Symbol
L99PM62GXP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM62GXP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - L99PM62GXP
click to zoom
3D Models
L99PM62GXP - STMicroelectronics - 3D model - Small Outline Packages - L99PM62GXP
click to zoom

L99PM62GXP Details

  • Manufacturer Part Number:

    L99PM62GXP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    11

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    3.45

  • Width:

    7.5 mm

L99PM62GXP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4921, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The L99PM62GXP is designed to work with various battery chemistries, including Li-ion, Li-polymer, and Lead-Acid. Configuration is done through the I2C interface, where the device can be programmed to adjust charging parameters, such as voltage, current, and termination conditions, according to the specific battery chemistry.
  • The L99PM62GXP is designed to handle up to 500 charging cycles, depending on the battery type and charging conditions. However, this number can vary depending on the specific application and usage patterns.
  • The L99PM62GXP is rated for operation up to 105°C, but it's recommended to derate the device's performance at high temperatures to ensure reliability and prevent overheating. Consult the datasheet and application notes for specific guidelines on thermal derating.
  • The L99PM62GXP has built-in overcharge protection, which can be configured through the I2C interface. The device monitors the battery voltage and current, and will automatically cut off charging when the battery reaches a predetermined voltage or charge level.
