L99PM62GXPTR - STMicroelectronics

Description: Power Management Specialized - PMIC Power Mgt IC LIN High Speed CAN 5V

Download L99PM62GXPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

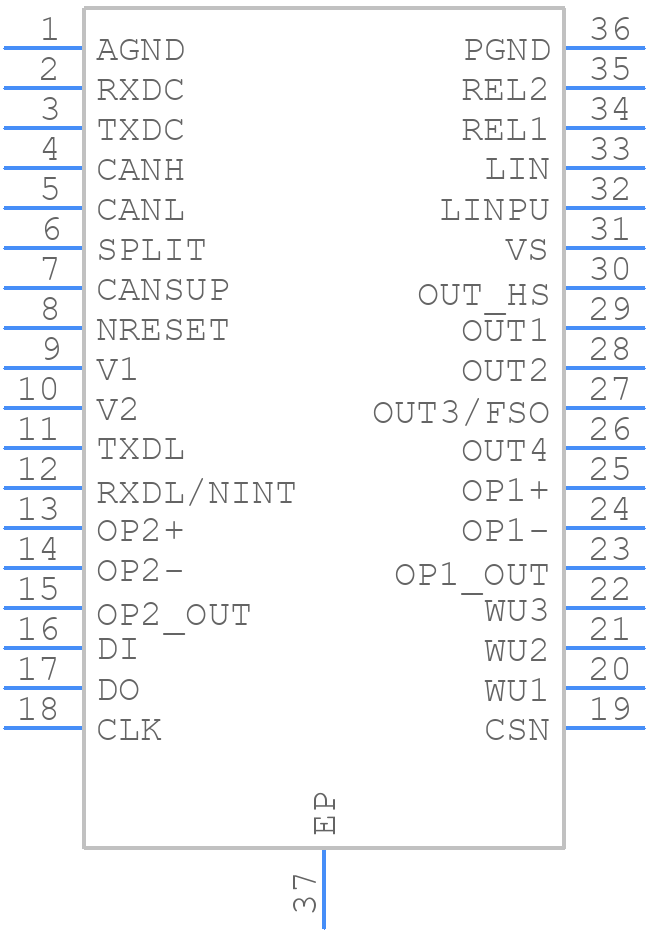

Symbol
L99PM62GXPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM62GXPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO36_3
click to zoom
3D Models
L99PM62GXPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO36_3
click to zoom

L99PM62GXPTR Details

  • Manufacturer Part Number:

    L99PM62GXPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    7

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    11

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.45 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    3.45

  • Width:

    7.5 mm

L99PM62GXPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2663, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal heat dissipation.
  • The selection of the inductor depends on the specific application requirements, such as output voltage, current, and frequency. STMicroelectronics provides a list of recommended inductors in the datasheet, and engineers can also use online inductor selection tools or consult with inductor manufacturers for guidance.
  • While the datasheet specifies an operating temperature range of -40°C to 150°C, the maximum ambient temperature for reliable operation depends on the specific application and cooling conditions. As a general guideline, STMicroelectronics recommends keeping the ambient temperature below 85°C for optimal reliability.
  • STMicroelectronics provides a troubleshooting guide in the application note AN2663, which covers common issues and their solutions. Engineers can also use oscilloscopes and thermal imaging cameras to diagnose issues and consult with STMicroelectronics' technical support team for guidance.
  • Yes, the L99PM62GXPTR requires proper EMI filtering to ensure compliance with electromagnetic compatibility (EMC) standards. STMicroelectronics provides guidelines for EMI filtering in the application note AN2663, including recommendations for filter components and PCB layout.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99PM62GXPTR Overview

Use the download button to access the L99PM62GXPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99PM, or try a keyword search, such as Power Management Circuits
