L99PM62XP - STMicroelectronics

Description: Power management IC with LIN and high speed CAN

Download L99PM62XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

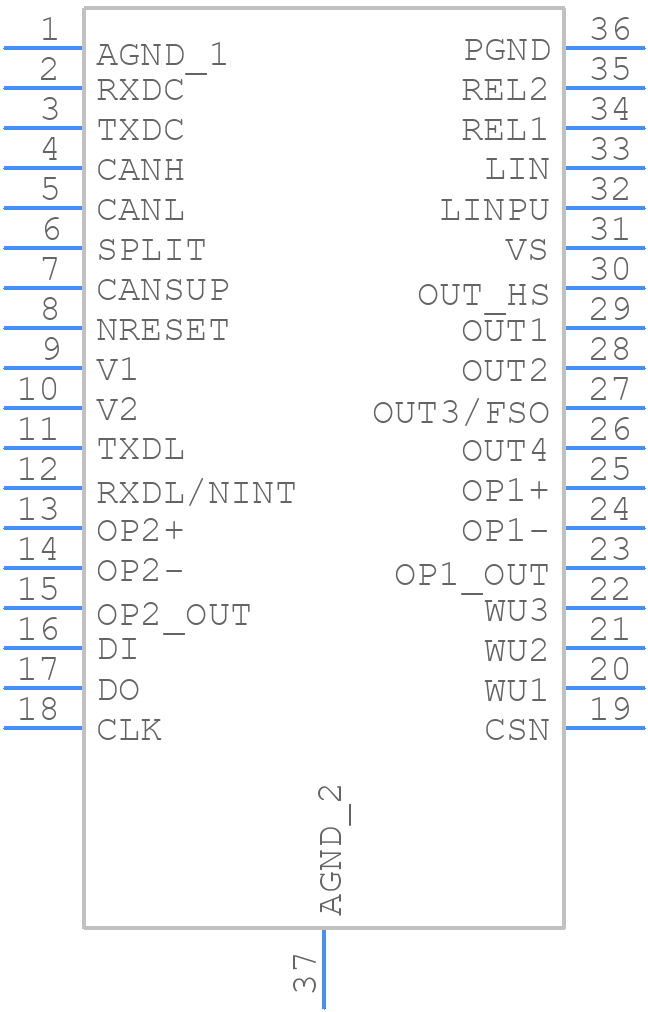

L99PM62XP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM62XP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36*
click to zoom
3D Models
L99PM62XP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36*
click to zoom

L99PM62XP Details

  • Manufacturer Part Number:

    L99PM62XP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, POWERSSO-36

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.45 mm

  • Supply Current-Max (Isup):

    12 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    13.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

L99PM62XP Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5323, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The L99PM62XP can be configured for different battery chemistries by adjusting the voltage and current settings through the I2C interface. The device also has built-in support for common battery chemistries such as Li-ion, Li-polymer, and Lead-Acid. Refer to the datasheet and application notes for specific configuration details.
  • The L99PM62XP can handle charging currents up to 2A, but the maximum current is dependent on the specific application and battery chemistry. It's recommended to consult the datasheet and application notes for specific current rating and thermal management guidelines.
  • The L99PM62XP has built-in over-voltage and under-voltage protection circuits that detect and respond to abnormal voltage conditions. The device can be configured to trigger an interrupt or shut down the charging circuit in response to over-voltage or under-voltage events.
  • The L99PM62XP is rated for operation up to 105°C, but it's recommended to consult the datasheet and application notes for specific thermal management guidelines and derating factors for high-temperature applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99PM62XP Overview

Use the download button to access the L99PM62XP schematic symbol, PCB footprint, and 3D model.
