L99PM72PXP - STMicroelectronics

Description: Advanced power management IC, with embedded LIN and HS CAN transceiver, supporting CAN Partial Networking

Download L99PM72PXP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

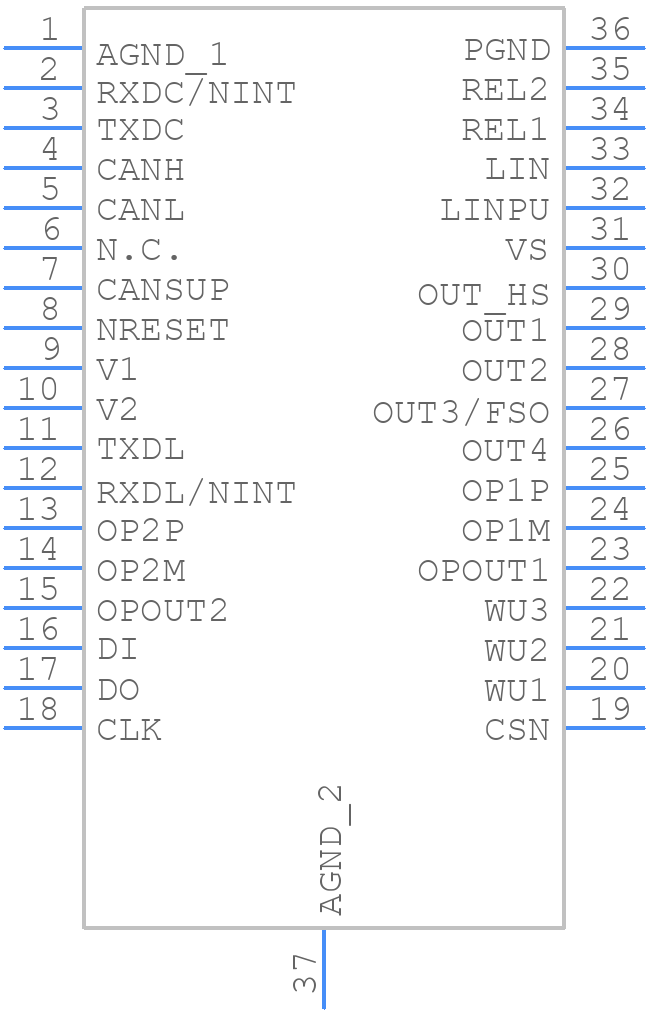

L99PM72PXP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM72PXP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36_2024
click to zoom
3D Models
L99PM72PXP - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36_2024
click to zoom

L99PM72PXP Details

  • Manufacturer Part Number:

    L99PM72PXP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

L99PM72PXP Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Use a reliable communication protocol such as SPI or I2C, and ensure that the clock frequency and data transmission rates are within the specified limits. Also, use a pull-up resistor on the SDA line and a pull-down resistor on the SCL line.
  • The maximum current that the L99PM72PXP can deliver to the load is 2.5A. However, this value may vary depending on the specific application and the thermal conditions.
  • Use a voltage regulator or a voltage supervisor to regulate the input voltage to the L99PM72PXP. Also, use a TVS diode or a zener diode to protect the device from overvoltage conditions.
  • A 10uF to 22uF ceramic capacitor is recommended for the input pin. The capacitor value may vary depending on the specific application and the input voltage ripple requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99PM72PXP Overview

Use the download button to access the L99PM72PXP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99PM, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
