Part Image

L99PM72PXPTR - STMicroelectronics

Description: Advanced power management system IC with embedded LIN and high speed CAN transceiver supporting CAN Partial Networking

Download L99PM72PXPTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

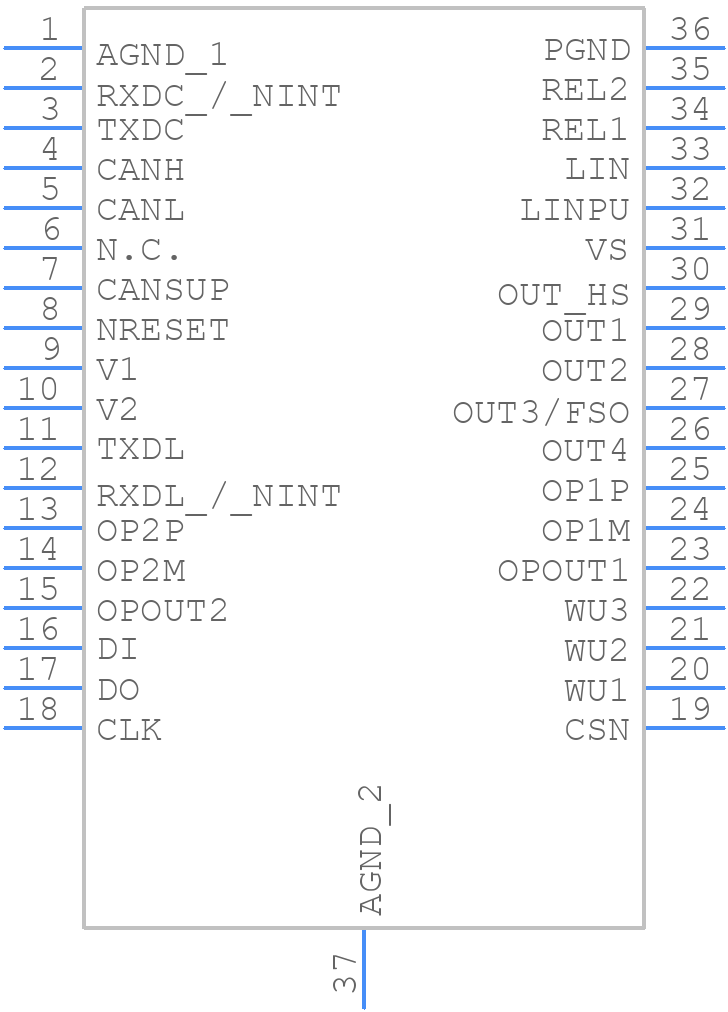

Symbol
L99PM72PXPTR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
L99PM72PXPTR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - PowerSSO-36---n
click to zoom
3D Models
L99PM72PXPTR - STMicroelectronics - 3D model - Small Outline Packages - PowerSSO-36---n
click to zoom

L99PM72PXPTR Details

  • Manufacturer Part Number:

    L99PM72PXPTR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    36

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP36,.4,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    12 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

L99PM72PXPTR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN4923, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The L99PM72PXPTR has a low-power mode that can be enabled by setting the EN pin low. Additionally, the device can be configured for low-power mode by programming the OTP (One-Time Programmable) memory. Refer to the datasheet and application notes for specific configuration details.
  • The maximum allowed voltage on the VCC pin is 5.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its reliability.
  • To troubleshoot I2C interface issues, check the I2C bus voltage levels, clock frequency, and signal integrity. Ensure that the I2C bus is properly terminated, and the device is properly addressed. Use an oscilloscope or logic analyzer to debug the I2C communication.
  • The recommended capacitor value for the VCC decoupling capacitor is 10uF to 22uF, with a voltage rating of 6.3V or higher. This capacitor helps to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

L99PM72PXPTR Overview

Use the download button to access the L99PM72PXPTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like L99PM, or try a keyword search, such as Power Management Circuits

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
