ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the LA-101VA. The input and output traces should be kept short and away from noise sources. A recommended layout is available in the ROHM application note AN11984.
The LA-101VA requires a bias voltage of 5V to 15V on the VCC pin. A decoupling capacitor of 10uF to 100uF should be placed close to the VCC pin to ensure stable operation. Additionally, the input signal should be AC-coupled to the VIN pin using a capacitor with a value of 10uF to 100uF.
The LA-101VA can handle input signal amplitudes up to 2Vrms. Exceeding this limit may result in distortion or damage to the device.
Yes, the LA-101VA can be used in a differential amplifier configuration. However, the input common-mode voltage range is limited to 2V, so the input signals should be biased accordingly. A detailed application note is available from ROHM for differential amplifier configurations.
The LA-101VA has a thermal derating of 5.5mW/°C above 25°C. This means that the maximum power dissipation decreases by 5.5mW for every degree Celsius above 25°C.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA-101VA Overview

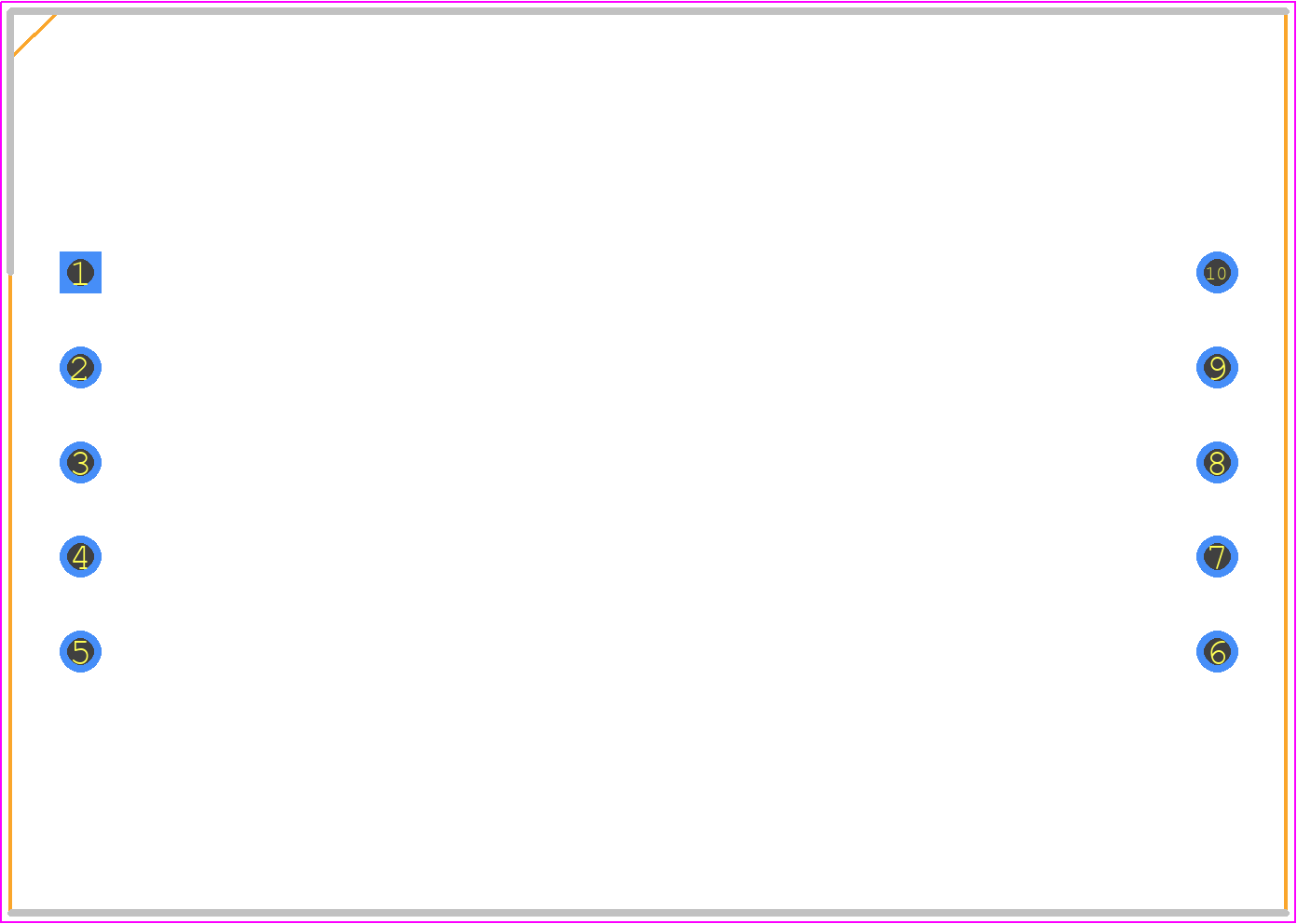

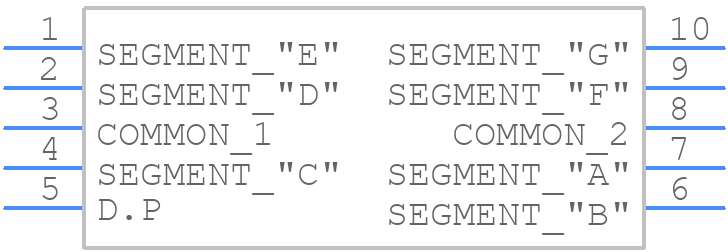

Use the download button to access the LA-101VA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LA-10,
or try a keyword search, such as LED Displays
