ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the LA-501VD. The input and output pins should be placed on opposite sides of the IC to minimize noise coupling. Additionally, a 10uF capacitor should be placed between the VCC and GND pins to filter out noise.
The LA-501VD requires a bias voltage of 5V to 15V. A voltage regulator such as the 78L05 can be used to provide a stable 5V bias. The bias voltage should be decoupled with a 10uF capacitor to filter out noise. Additionally, the input signal should be AC-coupled to the LA-501VD using a capacitor with a value of 10uF to 100uF.
The LA-501VD can handle input signal amplitudes up to 2Vpp. Exceeding this limit may result in distortion or damage to the IC. If a higher input signal amplitude is required, an attenuator or a voltage divider can be used to reduce the signal amplitude.
To troubleshoot issues with the LA-501VD, check the PCB layout for any noise coupling or signal integrity issues. Ensure that the input and output pins are properly terminated and that the bias voltage is stable. Use an oscilloscope to measure the input and output signals to identify any signs of oscillation or instability. If the issue persists, try replacing the LA-501VD with a new one or consult the ROHM Semiconductor application notes for further guidance.
The LA-501VD is rated for operation up to 85°C. However, the IC's performance may degrade at higher temperatures. If operation above 85°C is required, consider using a heat sink or a thermal management system to keep the IC temperature within the recommended range. Consult the ROHM Semiconductor datasheet for more information on the IC's thermal characteristics.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LA-501VD Overview

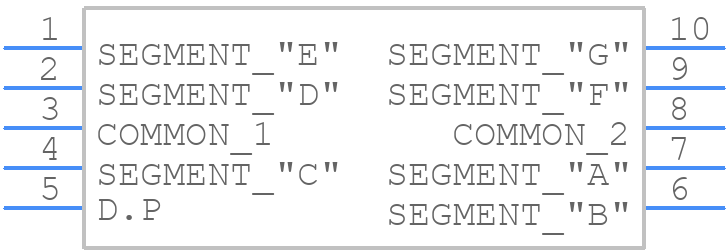

Use the download button to access the LA-501VD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LA-50,
or try a keyword search, such as LED Displays
