LAN8670B1-E/LMX footprint, schematic symbol and 3D model by Microchip

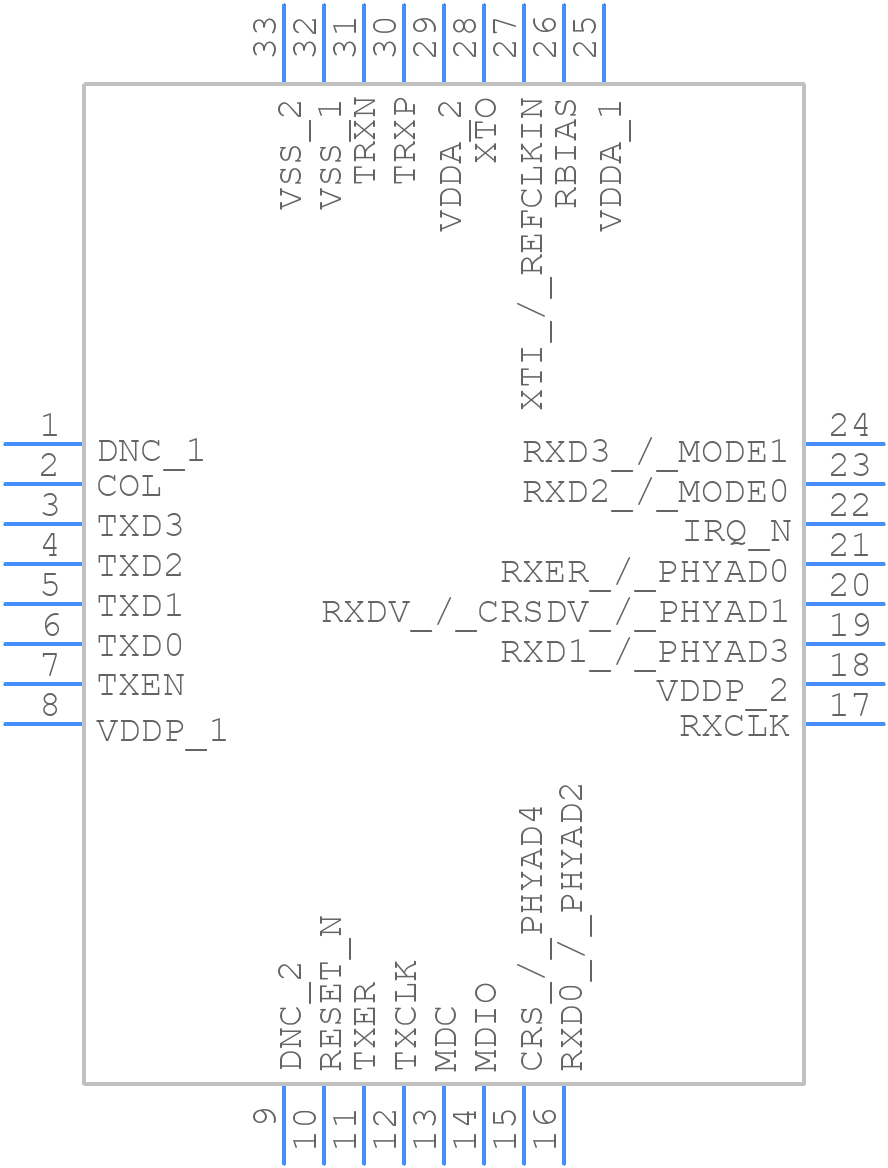

Symbol

click to zoom

PCB Footprints

LAN8670B1-E/LMX - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead Very Thin Plastic Quad Flat, No Lead Package (LMX) - 5x5x1.0 mm Body [VQFN]

click to zoom

3D Models

LAN8670B1-E/LMX - Microchip - 3D model - Quad Flat No-Lead - 32-Lead Very Thin Plastic Quad Flat, No Lead Package (LMX) - 5x5x1.0 mm Body [VQFN]

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LAN8670B1-E/LMX
Part Number LAN8670B1-E/LMX
Manufacturer Microchip
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 32-Lead Very Thin Plastic Quad Flat, No Lead Package (LMX) - 5x5x1.0 mm Body [VQFN]
Released Date May 29, 2023
Last Modified Date May 29, 2023 3:51 AM UTC
Pinout / Pin List Click Here (Member Only)

LAN8670B1-E/LMX Details

Manufacturer Part Number:
LAN8670B1-E/LMX
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
VQFN-32
HTS Code:
8542.39.00.01
Manufacturer:
Microchip Technology Inc
YTEOL:
0
Data Rate:
10000 Mbps
JESD-30 Code:
S-PQCC-N32
Length:
5 mm
Number of Functions:
1
Number of Terminals:
32
Number of Transceivers:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVQCCN
Package Equivalence Code:
LCC32,.2SQ,20
Package Shape:
SQUARE
Package Style:
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE
Seated Height-Max:
1 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
ETHERNET TRANSCEIVER
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Width:
5 mm

LAN8670B1-E/LMX Frequently Asked Questions (FAQs)

Microchip provides a recommended PCB layout guide in their application note AN2054, which includes guidelines for component placement, routing, and thermal management.
The LAN8670B1-E/LMX can be configured for different PHY modes using the strap pins or through software configuration. Refer to the Microchip application note AN2053 for detailed configuration guidelines.
The LAN8670B1-E/LMX supports cable lengths up to 100 meters, as per the IEEE 802.3 standard. However, the actual cable length may vary depending on the specific application and environmental conditions.
Microchip provides a troubleshooting guide in their application note AN2055, which covers common issues and their solutions. Additionally, engineers can use diagnostic tools such as oscilloscopes and logic analyzers to debug the system.
Yes, the LAN8670B1-E/LMX is rated for industrial temperature ranges from -40°C to 85°C, making it suitable for use in industrial and automotive applications.

Trust Checks

Community Provided

System Verified

Community Approved

LAN8670B1-E/LMX Overview

Use the download button to access the LAN8670B1-E/LMX schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LAN86, or try a keyword search, such as Network Interfaces

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
