LAN9255-V/ZMX018 - Microchip

LAN9255-V/ZMX018 Details

• Manufacturer Part Number:

  LAN9255-V/ZMX018

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

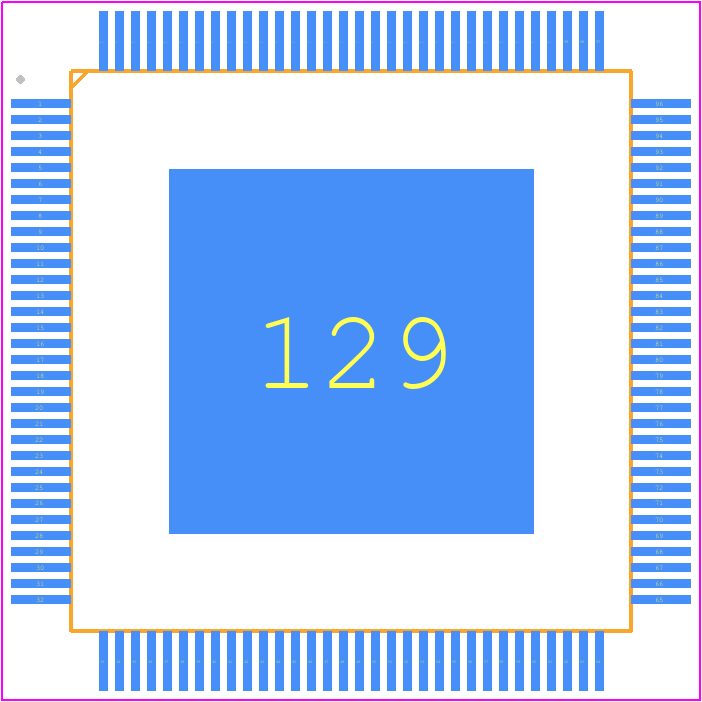

• Package Description:

  TQFP-128

• Pin Count:

  128

• Manufacturer Package Code:

  TQFP-128

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.31.00.30

• Factory Lead Time:

  14 Weeks

• Manufacturer:

  Microchip Technology Inc

• YTEOL:

  23

• Address Bus Width:

  16

• Boundary Scan:

  YES

• Bus Compatibility:

  MMC; SD; QSPI; USB

• Clock Frequency-Max:

  25 MHz

• Communication Protocol:

  SYNC, BYTE; ETHERNET

• Data Transfer Rate-Max:

  12.5 MBps

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G128

• JESD-609 Code:

  e3

• Length:

  14 mm

• Low Power Mode:

  YES

• Number of DMA Channels:

  32

• Number of I/O Lines:

  51

• Number of Serial I/Os:

  12

• Number of Terminals:

  128

• On Chip Data RAM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTFQFP

• Package Equivalence Code:

  QFP128,.63SQ,16

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

• RAM (words):

  131072

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.4 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  SERIAL IO/COMMUNICATION CONTROLLER, LAN
