LAO-50V472MS37PX#B - Elna

Description: 4700µF 50V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1000 Hrs @ 85°C

Download LAO-50V472MS37PX#B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LAO-50V472MS37PX#B - Elna - PCB symbol
click to zoom
PCB Footprints

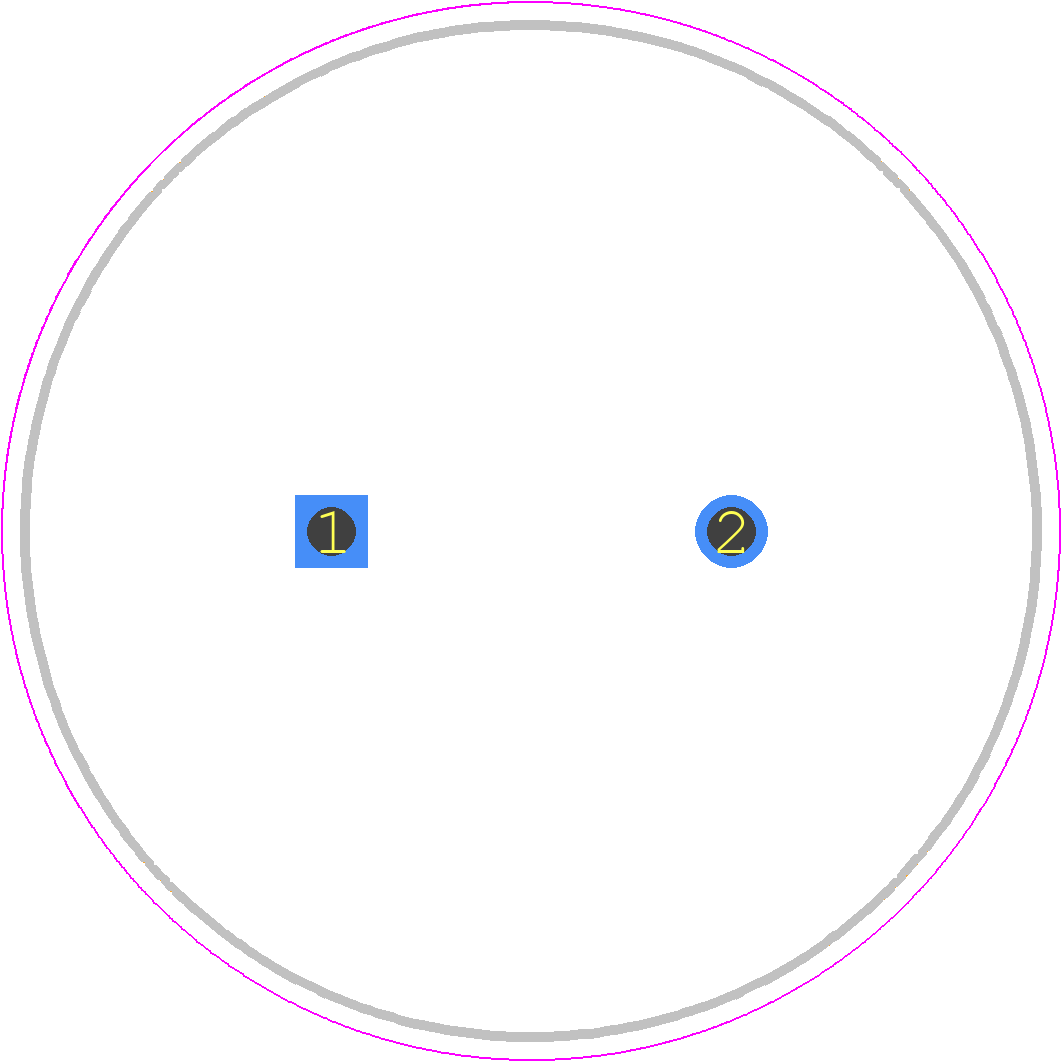

LAO-50V472MS37PX#B - Elna PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LAO_25×50
click to zoom
3D Models
LAO-50V472MS37PX#B - Elna - 3D model - Capacitor, Polarized Radial Diameter - LAO_25×50
click to zoom

LAO-50V472MS37PX#B Details

  • Manufacturer Part Number:

    LAO-50V472MS37PX#B

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • Manufacturer:

    ELNA America Inc

  • YTEOL:

    0

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Number of Terminals:

    2

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LAO-50V472MS37PX#B Overview

Use the download button to access the LAO-50V472MS37PX#B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LAO-5, or try a keyword search, such as Ceramic Capacitors
