A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane, and to place thermal vias under the IC to dissipate heat efficiently. Additionally, it's recommended to keep the PCB traces as short and wide as possible to reduce thermal resistance.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, such as using a heat sink or thermal interface material, and ensuring good airflow around the device. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature and implement thermal protection mechanisms if necessary.
Although the datasheet specifies the recommended operating voltage range, it's essential to note that the maximum allowed voltage on the input pins is typically 5.5V, and exceeding this voltage may cause damage to the device. It's recommended to use voltage limiting resistors or clamping diodes to protect the input pins from overvoltage conditions.
To troubleshoot issues with the device not turning on or not functioning properly, first check the power supply voltage and ensure it's within the recommended range. Verify that the input pins are properly connected and not shorted to ground or VCC. Also, check for any signs of physical damage, such as cracks or burn marks, and ensure that the device is properly soldered to the PCB.
The recommended storage temperature range for the LB11988V-TLM-E is typically between -40°C and 125°C, and the recommended storage humidity range is 60% RH or less. It's essential to follow these guidelines to prevent damage to the device during storage and to ensure reliable operation when the device is put into use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LB11988V-TLM-E Overview

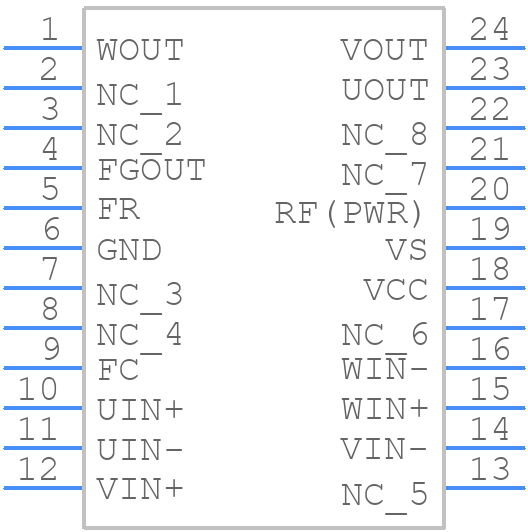

Use the download button to access the LB11988V-TLM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LB119,
or try a keyword search, such as Motion Control Electronics
