LBWA0ZZ2DS-688 - Murata Electronics

Description: Multiprotocol Modules Type 2DS Shielded ultra-small dual bandWi-Fi 11a/b/g/n/ac Bluetooth

Download LBWA0ZZ2DS-688 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LBWA0ZZ2DS-688 - Murata Electronics - PCB symbol
click to zoom
PCB Footprints

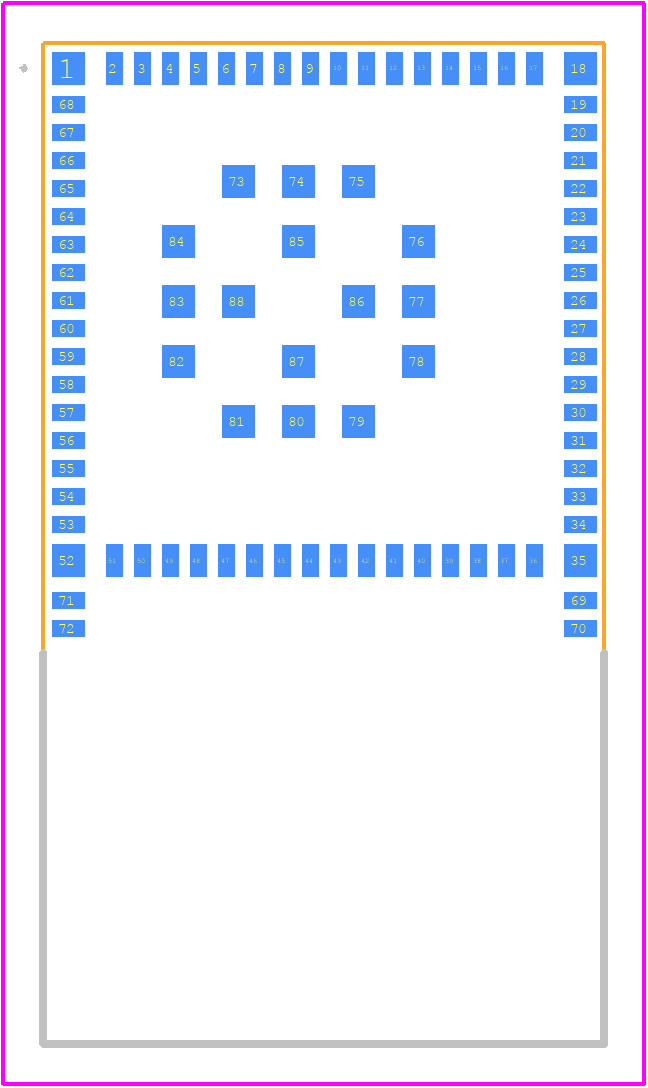

LBWA0ZZ2DS-688 - Murata Electronics PCB footprint - Other - Other - LBWA0ZZ2DS-688-3
click to zoom
3D Models
LBWA0ZZ2DS-688 - Murata Electronics - 3D model - Other - LBWA0ZZ2DS-688-3
click to zoom

LBWA0ZZ2DS-688 Details

  • Manufacturer Part Number:

    LBWA0ZZ2DS-688

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Murata Manufacturing Co Ltd

  • YTEOL:

    9

  • uPs/uCs/Peripheral ICs Type:

    SOC

LBWA0ZZ2DS-688 Frequently Asked Questions (FAQs)

  • The operating temperature range of the LBWA0ZZ2DS-688 is -40°C to +85°C.
  • Yes, the LBWA0ZZ2DS-688 is certified to IEC 60601-1 and can be used in medical devices.
  • The maximum transmit power of the LBWA0ZZ2DS-688 is +12 dBm.
  • Yes, the LBWA0ZZ2DS-688 supports Bluetooth 5.0, which provides longer range and higher speeds compared to previous Bluetooth versions.
  • The typical current consumption of the LBWA0ZZ2DS-688 is around 4.5 mA in transmit mode and 1.5 mA in receive mode.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LBWA0ZZ2DS-688 Overview

Use the download button to access the LBWA0ZZ2DS-688 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LBWA0, or try a keyword search, such as Other Telecom ICs

About Murata Electronics

Murata Manufacturing Co., Ltd. is a Japanese multinational company that specializes in the design, manufacturing, and sale of electronic components and solutions. Murata offers a wide range of electronic components and modules that are used in various industries and applications. Some of their key product categories include: capacitors, inductors, resistors, sensors, rf components and modules, and power devices.
