The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
To implement a reliable JTAG chain, ensure that each device has a unique TDI/TDO pin connection, and use a JTAG cable with a 1-kΩ pull-up resistor on the TMS line. Also, use a JTAG clock frequency of 10 MHz or less to prevent signal degradation.
The maximum operating frequency of the LC4032V-25T44C is 250 MHz, but this can vary depending on the specific application, operating conditions, and device utilization. It's recommended to consult the datasheet and perform simulation and testing to determine the optimal frequency for your design.
To optimize the LC4032V-25T44C for low power consumption, use the lowest possible voltage supply, minimize clock frequency, and use the device's built-in power-saving features such as clock gating and dynamic voltage scaling. Additionally, optimize your design to minimize switching activity and use low-power modes when possible.
The LC4032V-25T44C is not specifically designed or tested for radiation-hardened applications. If you need a radiation-hardened FPGA, you should consider a different device that is specifically designed and qualified for such applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4032V-25T44C Overview

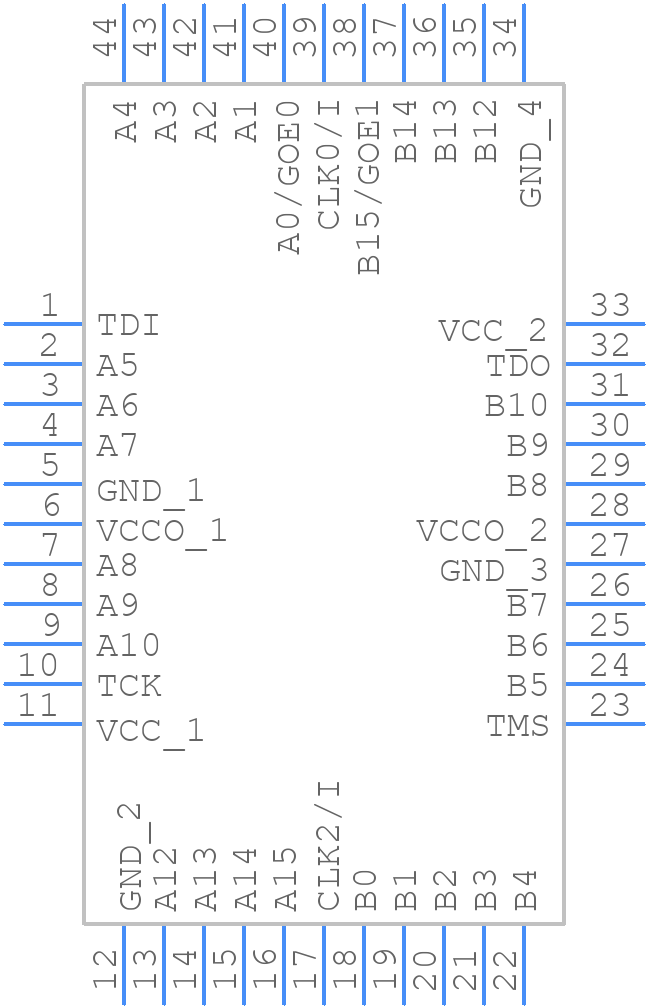

Use the download button to access the LC4032V-25T44C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC403,
or try a keyword search, such as Programmable Logic Devices
