The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then VREF. This ensures that the internal voltage regulators are powered up correctly and prevents any potential damage to the device.
To implement a reliable JTAG chain, ensure that each device has a unique TDI/TDO pin connection, and use a JTAG cable with a 1-kΩ resistor in series with the TCK signal to prevent signal reflections. Also, use a JTAG adapter or a buffer chip to drive the JTAG signals if the chain is long.
The maximum frequency for the LC4032V-5T44C's PLL is 400 MHz. However, the actual frequency limit may be lower depending on the specific application, PCB layout, and operating conditions. It's recommended to consult with Lattice Semiconductor Corporation's technical support for specific guidance.
The LC4032V-5T44C is not specifically designed or tested for radiation-hardened applications. If you need a radiation-hardened FPGA, you should consider Lattice Semiconductor Corporation's radiation-hardened products, such as the RH4032V, which are designed and tested for space and high-reliability applications.
To optimize power consumption, use the Lattice Semiconductor Corporation's Power Calculator tool to estimate power consumption based on your design's specific requirements. Additionally, consider using the device's power-saving features, such as clock gating, dynamic voltage and frequency scaling, and shutdown modes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4032V-5T44C Overview

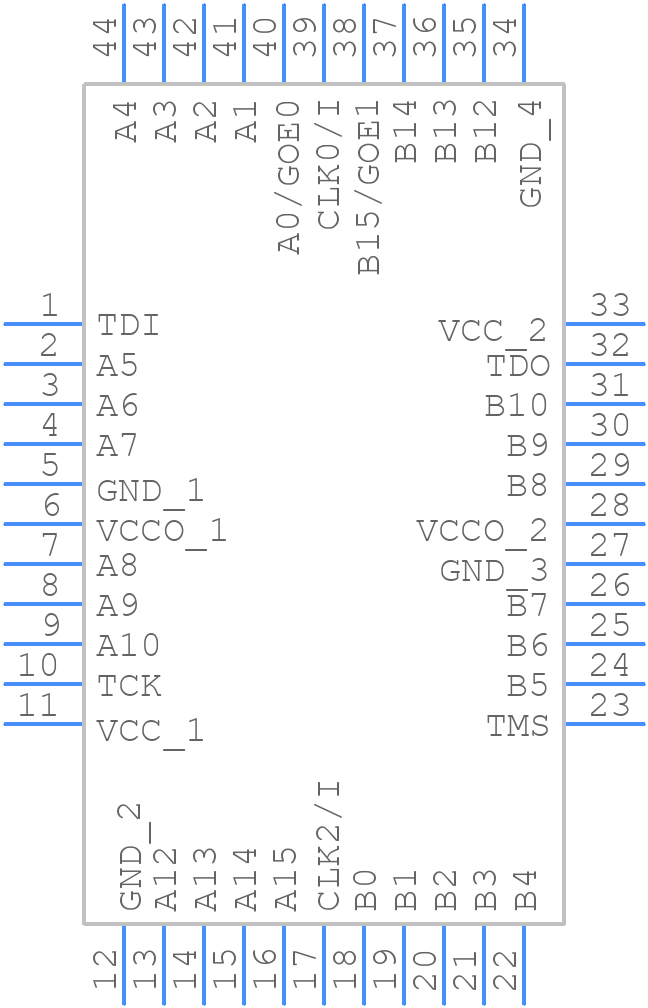

Use the download button to access the LC4032V-5T44C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC403,
or try a keyword search, such as Programmable Logic Devices
