The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then the input clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
A reliable reset circuit can be implemented using a resistor-capacitor (RC) network connected to the reset pin. The RC network should be designed to provide a reset pulse of at least 10 ms to ensure that the device is properly reset.
The maximum frequency of operation for the LC4032V-5T48C is 48 MHz, as specified in the datasheet. However, the actual operating frequency may be limited by the system clock frequency, the complexity of the design, and the operating conditions.
To optimize the LC4032V-5T48C for low power consumption, use the lowest possible voltage supply, minimize the clock frequency, and use the power-down mode when the device is not in use. Additionally, use the built-in power-saving features, such as the sleep mode, to reduce power consumption.
The recommended PCB layout and routing for the LC4032V-5T48C involves using a multi-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using short, direct traces for the clock and data signals. Additionally, avoid routing critical signals near the device's power pins to minimize noise and interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4032V-5T48C Overview

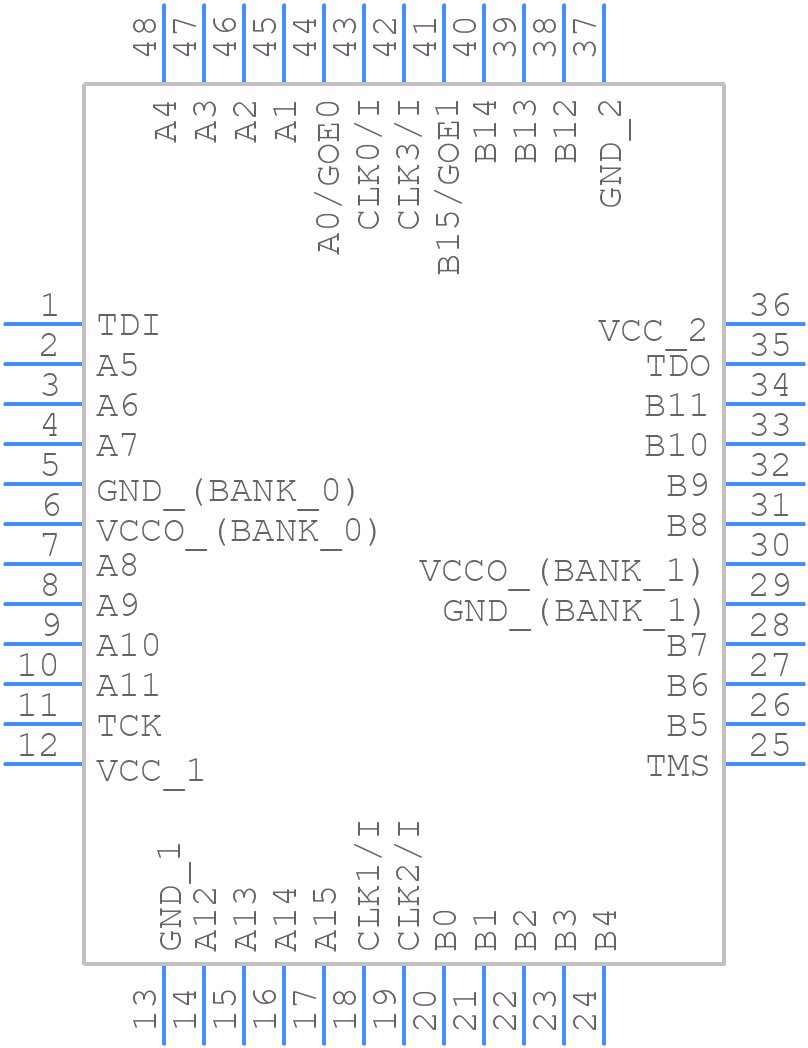

Use the download button to access the LC4032V-5T48C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC403,
or try a keyword search, such as Programmable Logic Devices
