LC4032V-5TN44C - Lattice Semiconductor

Description: CPLD - Complex Programmable Logic Devices PROGRAMMABLE SUPER FAST HI DENSITY PLD

Download LC4032V-5TN44C Model
Schematic
symbols

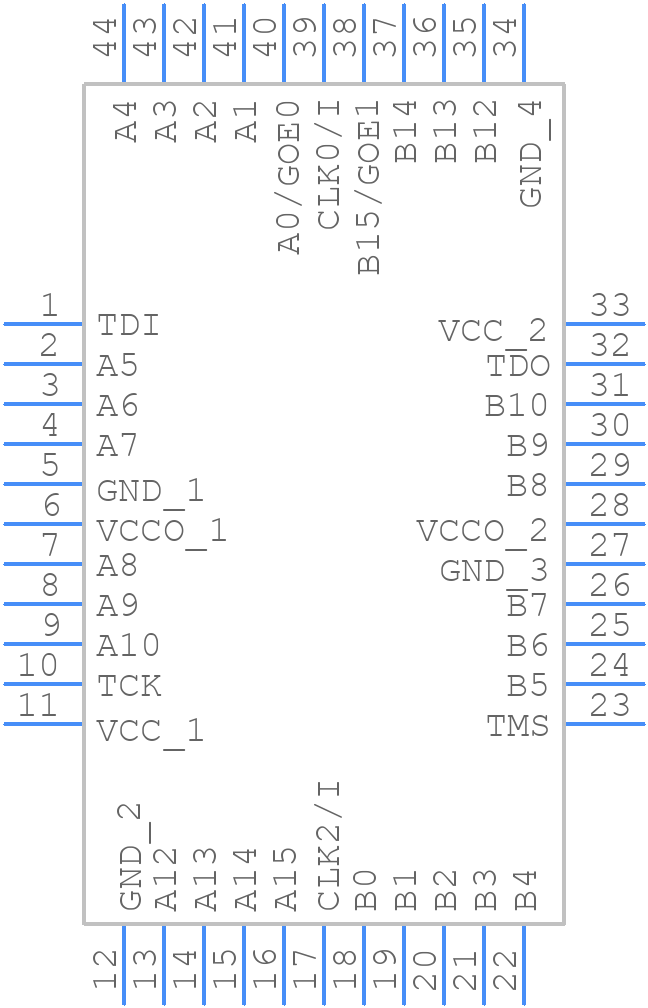

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LC4032V-5TN44C - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 44 pin TQFP
click to zoom
3D Models
LC4032V-5TN44C - Lattice Semiconductor  - 3D model - Quad Flat Packages - 44 pin TQFP
click to zoom

LC4032V-5TN44C Details

  • Manufacturer Part Number:

    LC4032V-5TN44C

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-44

  • Pin Count:

    44

  • Country Of Origin:

    Indonesia, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    10

  • Architecture:

    PAD-TYPE

  • Clock Frequency-Max:

    156 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PQFP-G44

  • JESD-609 Code:

    e3

  • JTAG BST:

    YES

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Dedicated Inputs:

    2

  • Number of I/O Lines:

    30

  • Number of Inputs:

    32

  • Number of Macro Cells:

    32

  • Number of Outputs:

    30

  • Number of Product Terms:

    83

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    90 °C

  • Organization:

    2 DEDICATED INPUTS, 30 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TQFP

  • Package Equivalence Code:

    TQFP44,.47SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10 mm

LC4032V-5TN44C Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCIO before VCC. This ensures that the I/O banks are powered up before the core voltage.
  • To implement a CDC, use a synchronizer circuit or a FIFO-based CDC. The synchronizer circuit can be implemented using a double-flop synchronizer or a handshake synchronizer. The FIFO-based CDC uses a FIFO to transfer data between clock domains.
  • The maximum frequency of the LC4032V-5TN44C is 150 MHz. However, the actual frequency may vary depending on the design and the operating conditions.
  • To optimize power consumption, use the power management features of the LC4032V-5TN44C, such as clock gating, power gating, and dynamic voltage and frequency scaling. Additionally, optimize the design to minimize switching activity and use low-power modes when possible.
  • The maximum current rating of the LC4032V-5TN44C is 500 mA. However, the actual current consumption may vary depending on the design and the operating conditions.
