The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
To implement a reliable JTAG chain, ensure that each device has a unique TDI/TDO pin connection, and use a JTAG cable with a 1-kΩ pull-up resistor on the TCK line. Also, use a JTAG adapter or a dedicated JTAG controller to manage the JTAG signals.
The maximum operating frequency of the LC4032V-75TN48E is 75 MHz, but it can be overclocked up to 100 MHz with careful design and layout considerations. However, overclocking may void the warranty and affect device reliability.
To optimize the LC4032V-75TN48E for low power consumption, use the lowest possible voltage supply, minimize clock frequency, and use the power-down mode when the device is not in use. Additionally, use the built-in power management features, such as the sleep mode, to reduce power consumption.
The recommended PCB layout and routing for the LC4032V-75TN48E involves using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using controlled impedance traces for clock and data signals. Also, avoid routing critical signals under the device and use a consistent signal routing strategy.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4032V-75TN48E Overview

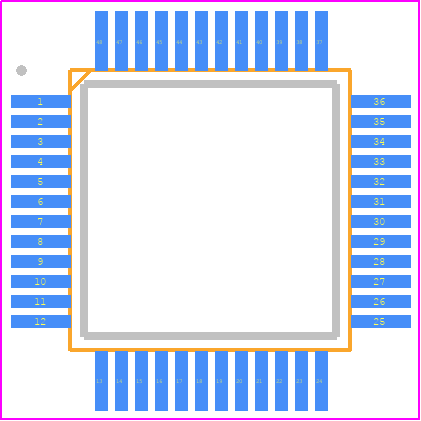

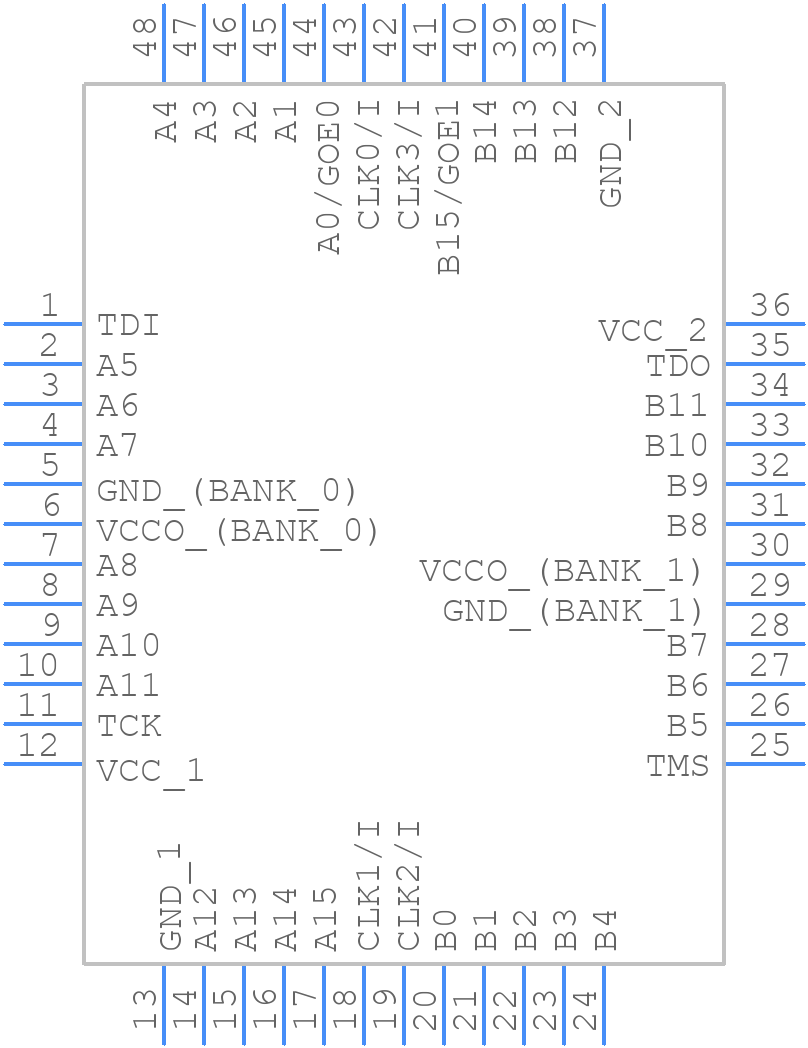

Use the download button to access the LC4032V-75TN48E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC403,
or try a keyword search, such as Programmable Logic Devices
