The recommended power-up sequence is to apply VCCIO first, followed by VCCINT, and then configure the device. This ensures proper device operation and prevents potential damage.
Use a high-quality clock source, such as a crystal oscillator or a phase-locked loop (PLL), and ensure that the clock signal is properly terminated and routed to minimize skew and jitter.
Follow best practices for high-speed digital design, including using controlled impedance traces, minimizing signal lengths, and avoiding vias and stubs. Also, ensure that power and ground planes are properly decoupled and bypassed.
Use the device's built-in power management features, such as clock gating and dynamic voltage and frequency scaling. Also, optimize the design to minimize switching activity, use low-power modes when possible, and consider using a low-power FPGA fabric.
Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines. Also, consider using thermal interface materials and thermal vias to improve heat dissipation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4032V-75TN48I Overview

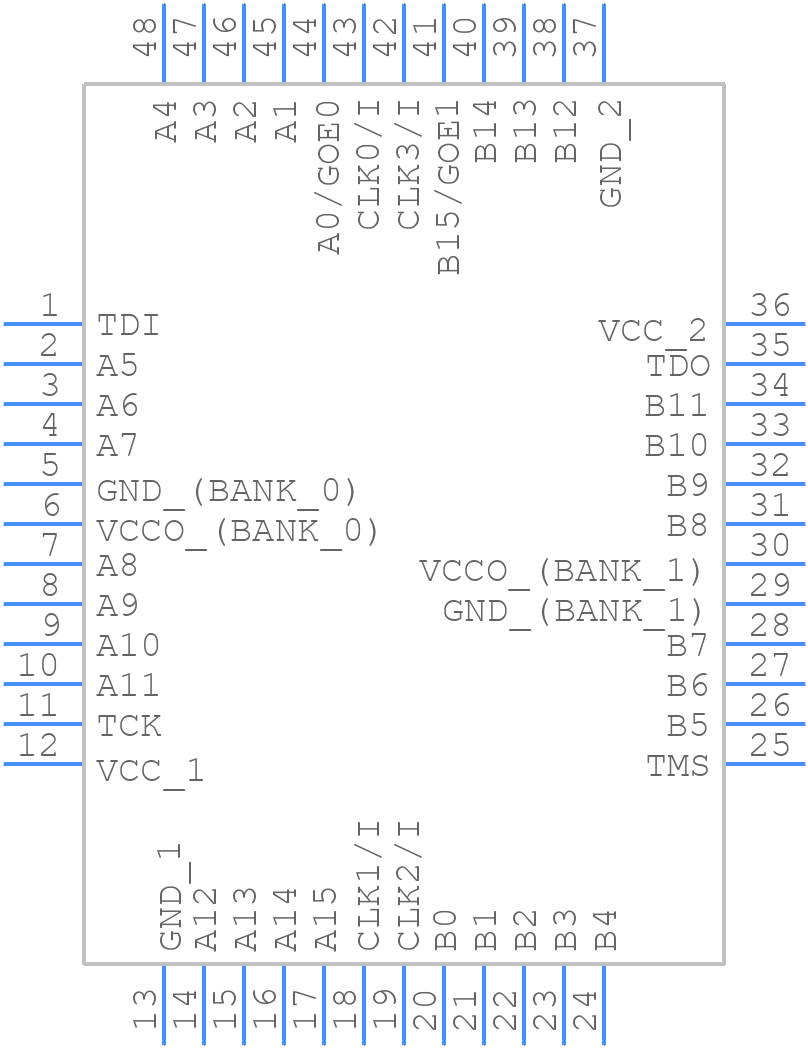

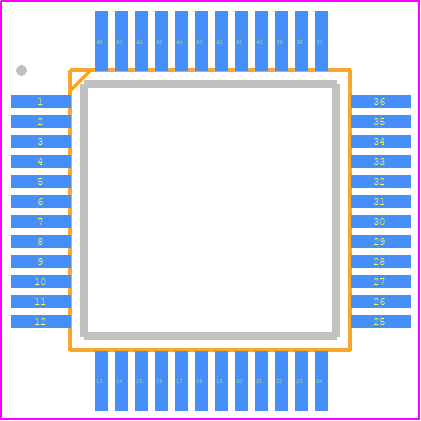

Use the download button to access the LC4032V-75TN48I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC403,
or try a keyword search, such as Programmable Logic Devices
