LC4032ZE-7TN48C - Lattice Semiconductor

Description: LC4032ZE-7TN48C, CPLD ispMACH 4000ZE EEPROM 32 Cells, 32 I/O, 2 Labs, 7.5ns, ISP, 1.7 → 1.9 V 48-Pin TQFP

Download LC4032ZE-7TN48C Model

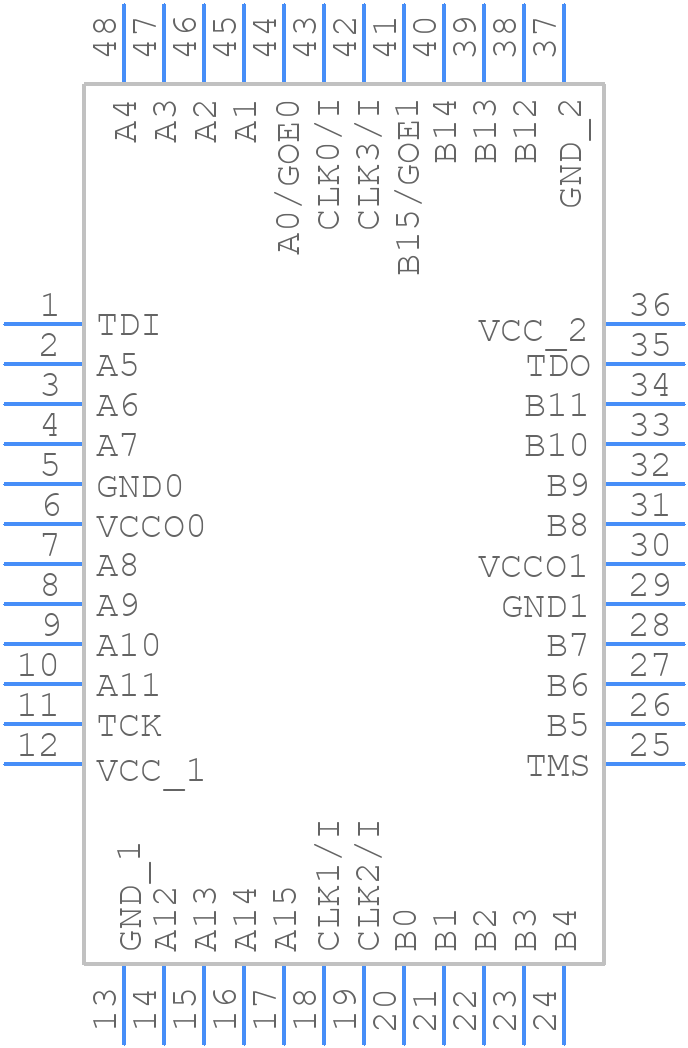

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

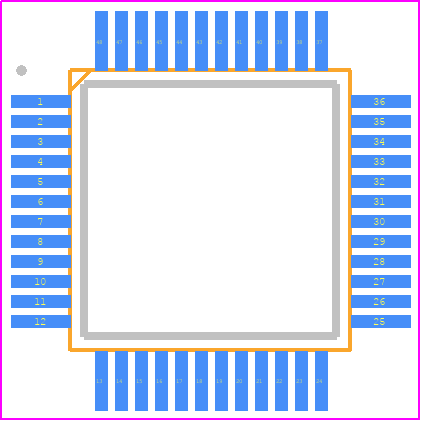

LC4032ZE-7TN48C - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 48-Pin TQFP
click to zoom
3D Models
LC4032ZE-7TN48C - Lattice Semiconductor  - 3D model - Quad Flat Packages - 48-Pin TQFP
click to zoom

LC4032ZE-7TN48C Details

  • Manufacturer Part Number:

    LC4032ZE-7TN48C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    7 X 7 MM, LEAD FREE, TQFP-48

  • Pin Count:

    48

  • Country Of Origin:

    Indonesia, Japan, Malaysia, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    5

  • Additional Feature:

    YES

  • Clock Frequency-Max:

    111 MHz

  • In-System Programmable:

    YES

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e3

  • JTAG BST:

    YES

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Dedicated Inputs:

    4

  • Number of I/O Lines:

    32

  • Number of Inputs:

    36

  • Number of Macro Cells:

    32

  • Number of Outputs:

    32

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    90 °C

  • Organization:

    4 DEDICATED INPUTS, 32 I/O

  • Output Function:

    MACROCELL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    EE PLD

  • Propagation Delay:

    7.5 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

LC4032ZE-7TN48C Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCIO first, followed by VCC. This ensures that the internal voltage regulators are powered up correctly.
  • The LC4032ZE-7TN48C has a dedicated clock tree network. To implement a clock tree, use the Clock Wizard tool in the Lattice Diamond software to generate a clock tree that meets your specific requirements.
  • The maximum frequency of operation for the LC4032ZE-7TN48C is 150 MHz. However, this can vary depending on the specific application and design requirements.
  • To optimize power consumption, use the Power Analyzer tool in the Lattice Diamond software to identify areas of high power consumption. Then, use techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling to reduce power consumption.
  • The maximum current rating for the LC4032ZE-7TN48C is 500 mA for VCCIO and 300 mA for VCC. However, this can vary depending on the specific application and design requirements.
