The recommended power-up sequence is to apply VCCIO before VCC, and to ensure that VCCIO is stable before applying VCC. This helps to prevent internal voltage regulator malfunctions.
To implement a reliable JTAG interface, ensure that the JTAG clock frequency is within the recommended range (typically 10-30 MHz), and use a JTAG cable with a 1 kΩ pull-up resistor on the TMS line. Also, make sure to follow the JTAG signal integrity guidelines provided in the datasheet.
The maximum operating temperature range for the LC4064V-25TN44C is -40°C to 85°C (industrial grade) or -40°C to 100°C (extended industrial grade). However, it's essential to consider the junction temperature (TJ) and ensure it does not exceed 125°C during operation.
To optimize the LC4064V-25TN44C for low power consumption, use the lowest possible voltage supply, reduce the clock frequency, and minimize the number of active resources. Additionally, use the power-saving features provided by the device, such as the 'sleep' mode, and consider using a power-gating technique.
To ensure signal integrity and minimize noise, follow the recommended PCB layout guidelines: keep signal traces short and away from power planes, use a solid ground plane, and add decoupling capacitors near the device. Also, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-25TN44C Overview

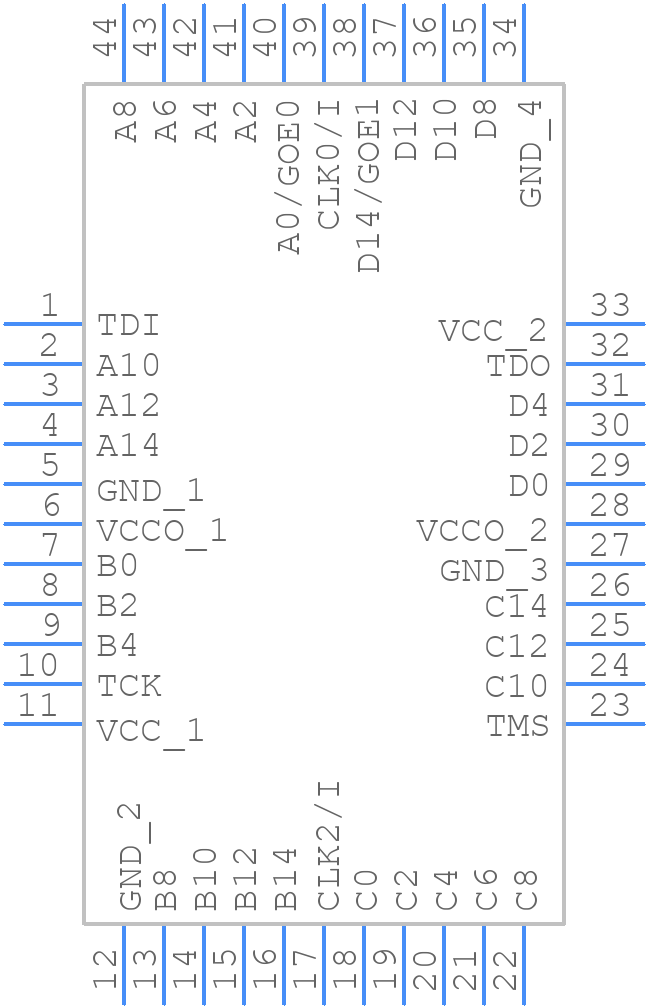

Use the download button to access the LC4064V-25TN44C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
