LC4064V-5T44C footprint, schematic symbol and 3D model by Lattice Semiconductor

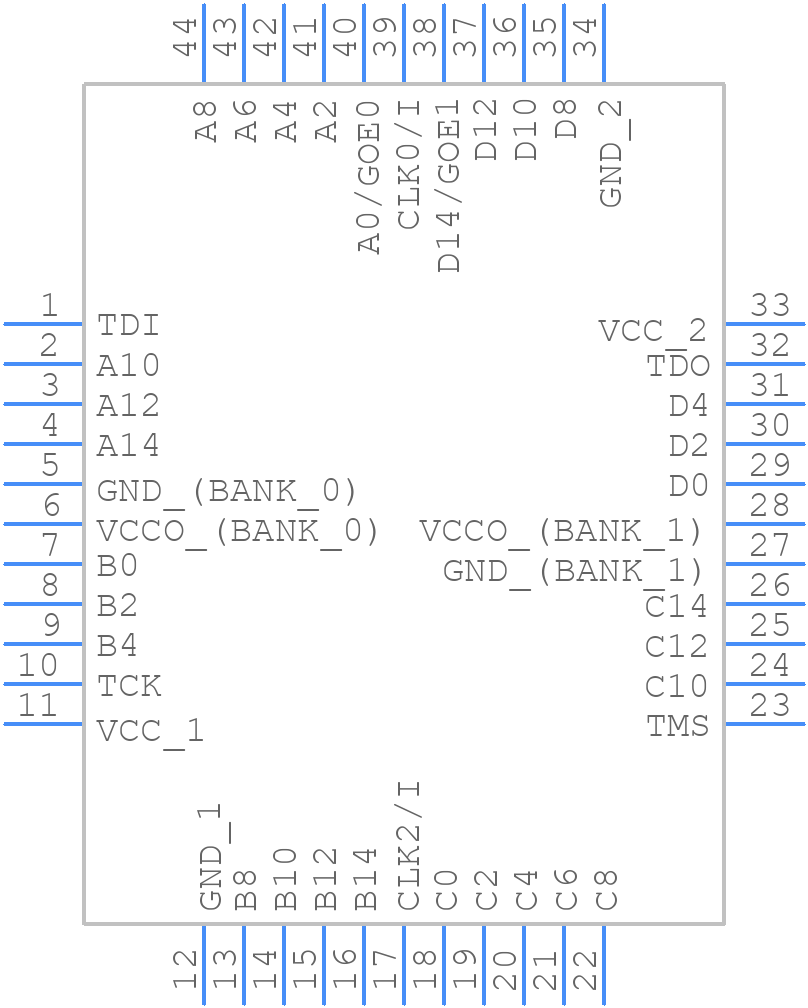

Symbol

click to zoom

PCB Footprints

LC4064V-5T44C - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 44 pin TQFP

click to zoom

3D Models

LC4064V-5T44C - Lattice Semiconductor - 3D model - Quad Flat Packages - 44 pin TQFP

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LC4064V-5T44C
Part Number LC4064V-5T44C
Manufacturer Lattice Semiconductor
Pin Count 44
Part Category Integrated Circuit
Package Category Quad Flat Packages
Footprint Name Quad Flat Packages - 44 pin TQFP
Released Date Mar 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LC4064V-5T44C Details

Manufacturer Part Number:
LC4064V-5T44C
Pbfree Code:
No
Part Life Cycle Code:
Obsolete
Part Package Code:
QFP
Package Description:
TQFP-44
Pin Count:
44
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Lattice Semiconductor Corporation
YTEOL:
0
Architecture:
PAD-TYPE
Clock Frequency-Max:
156 MHz
In-System Programmable:
YES
JESD-30 Code:
S-PQFP-G44
JESD-609 Code:
e0
JTAG BST:
YES
Length:
10 mm
Moisture Sensitivity Level:
3
Number of Dedicated Inputs:
2
Number of I/O Lines:
30
Number of Inputs:
32
Number of Macro Cells:
64
Number of Outputs:
30
Number of Product Terms:
83
Number of Terminals:
44
Operating Temperature-Max:
90 °C
Organization:
2 DEDICATED INPUTS, 30 I/O
Output Function:
MACROCELL
Package Body Material:
PLASTIC/EPOXY
Package Code:
TQFP
Package Equivalence Code:
TQFP44,.47SQ,32
Package Shape:
SQUARE
Package Style:
FLATPACK, THIN PROFILE
Peak Reflow Temperature (Cel):
240
Programmable Logic Type:
EE PLD
Propagation Delay:
5 ns
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
3 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Terminal Finish:
TIN LEAD
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm

LC4064V-5T44C Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
The LC4064V-5T44C has a built-in clock tree that can be configured using the ispLEVER or Lattice Diamond software. The clock tree can be customized to meet specific design requirements, and the software provides tools to optimize clock skew and jitter.
The maximum frequency of operation for the LC4064V-5T44C is dependent on the specific design and implementation. However, the device is typically specified to operate at frequencies up to 250 MHz. Higher frequencies may be possible with careful design and optimization.
The LC4064V-5T44C has a dedicated reset pin that can be used to reset the device. The reset signal can be generated internally or externally, and the device provides a reset synchronization circuit to ensure that the reset signal is properly synchronized with the clock signal.
The power consumption of the LC4064V-5T44C is dependent on the specific design and implementation. However, the device is typically specified to have a static power consumption of around 100-200 mW, and dynamic power consumption of around 1-2 W at maximum frequency.

Trust Checks

Community Provided

System Verified

Community Approved

LC4064V-5T44C Overview

Use the download button to access the LC4064V-5T44C schematic symbol, PCB footprint, and 3D model.
