The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then VREF. This ensures that the internal voltage regulators are powered up correctly and prevents any potential damage to the device.
To implement a reliable clock tree, use a dedicated clock network, and ensure that the clock signal is routed with minimal skew and jitter. Also, use the device's built-in clock conditioning circuitry, such as the clock delay and clock skew adjustment features, to optimize clock signal quality.
To ensure proper thermal management, use a heat sink or thermal pad on the device, and ensure good airflow around the device. Also, avoid blocking the airflow around the device, and use thermal interface materials to improve heat transfer between the device and the heat sink or thermal pad.
To optimize power consumption, use the device's power management features, such as the power-down mode, and optimize the clock frequency and voltage settings for your specific application. Additionally, use the device's built-in power estimation tools to estimate power consumption and identify areas for optimization.
When laying out and routing the PCB, ensure that the device's power and ground pins are connected to a solid power and ground plane, and use short, direct traces for critical signals. Also, avoid routing critical signals near noise sources, and use shielding and guard rings to minimize electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-5T48C Overview

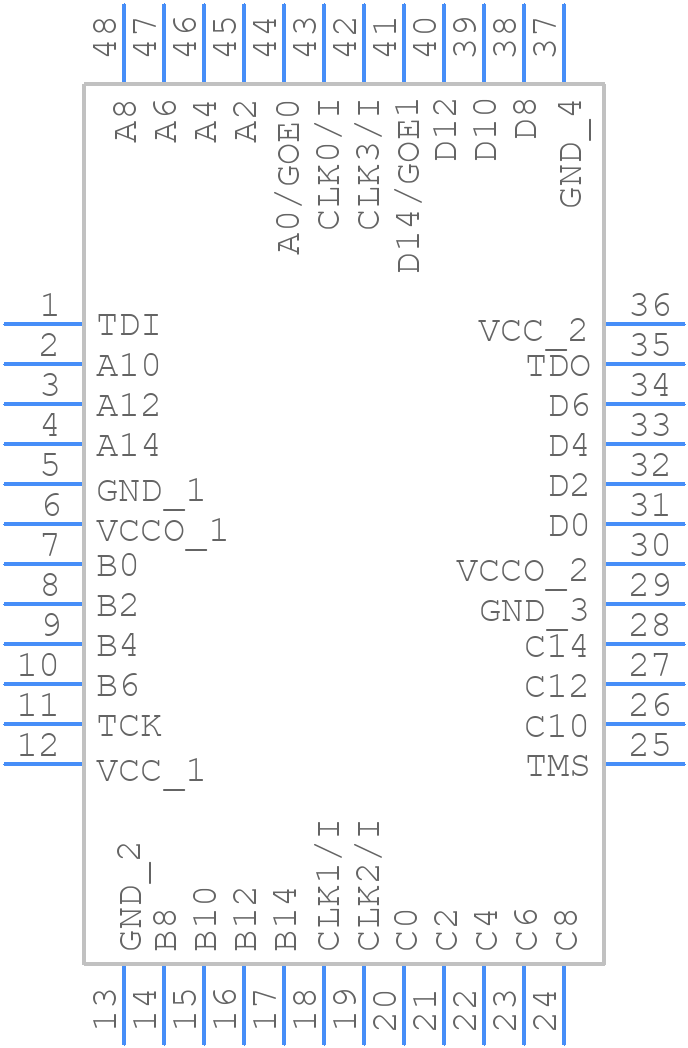

Use the download button to access the LC4064V-5T48C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
