The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
The LC4064V-75T44C has a dedicated clock network that can be used to distribute clock signals. To implement a clock tree, use the clock pins (CLK) and the clock enable pins (CLKEN) to create a hierarchical clock distribution network. Refer to the datasheet for specific pinouts and configuration guidelines.
The maximum frequency of operation for the LC4064V-75T44C is 75 MHz. However, this can vary depending on the specific application, operating conditions, and design constraints. It's recommended to consult the datasheet and perform simulations to determine the optimal frequency of operation for your specific design.
To optimize the LC4064V-75T44C for low power consumption, use the following techniques: 1) Use the lowest possible voltage supply (VCC) and input/output voltage (VCCIO) compatible with your design. 2) Minimize the number of active inputs and outputs. 3) Use the power-down mode (PD) to reduce power consumption when the device is not in use. 4) Optimize the clock frequency and duty cycle to minimize power consumption.
The maximum current rating for the LC4064V-75T44C is 100 mA per pin, with a total current limit of 500 mA for the entire device. However, it's recommended to consult the datasheet and perform thermal analysis to ensure that the device operates within safe operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-75T44C Overview

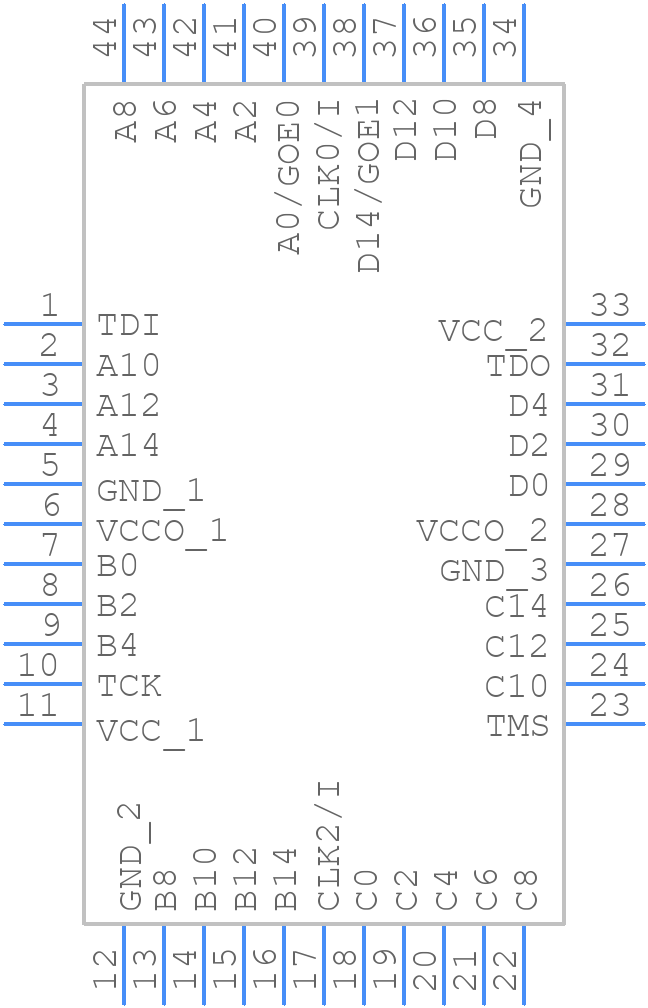

Use the download button to access the LC4064V-75T44C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
