The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then apply the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
A reliable reset mechanism can be implemented by using a reset signal that is synchronized with the clock signal. This ensures that the device is properly reset and initialized before operation. Additionally, a power-on reset (POR) circuit can be used to ensure a clean reset during power-up.
The maximum frequency of operation for the LC4064V-75TN44C is 75 MHz. However, this frequency may vary depending on the specific application and operating conditions. It is recommended to consult the datasheet and perform thorough testing to determine the maximum frequency of operation for a specific design.
To optimize the LC4064V-75TN44C for low power consumption, it is recommended to use the lowest possible voltage supply, minimize clock frequency, and use power-down modes when possible. Additionally, using a low-power oscillator and minimizing the number of active inputs can also help reduce power consumption.
The LC4064V-75TN44C is a high-density device that can generate significant heat during operation. To ensure reliable operation, it is essential to provide adequate thermal management, such as using a heat sink or thermal interface material, and ensuring good airflow around the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-75TN44C Overview

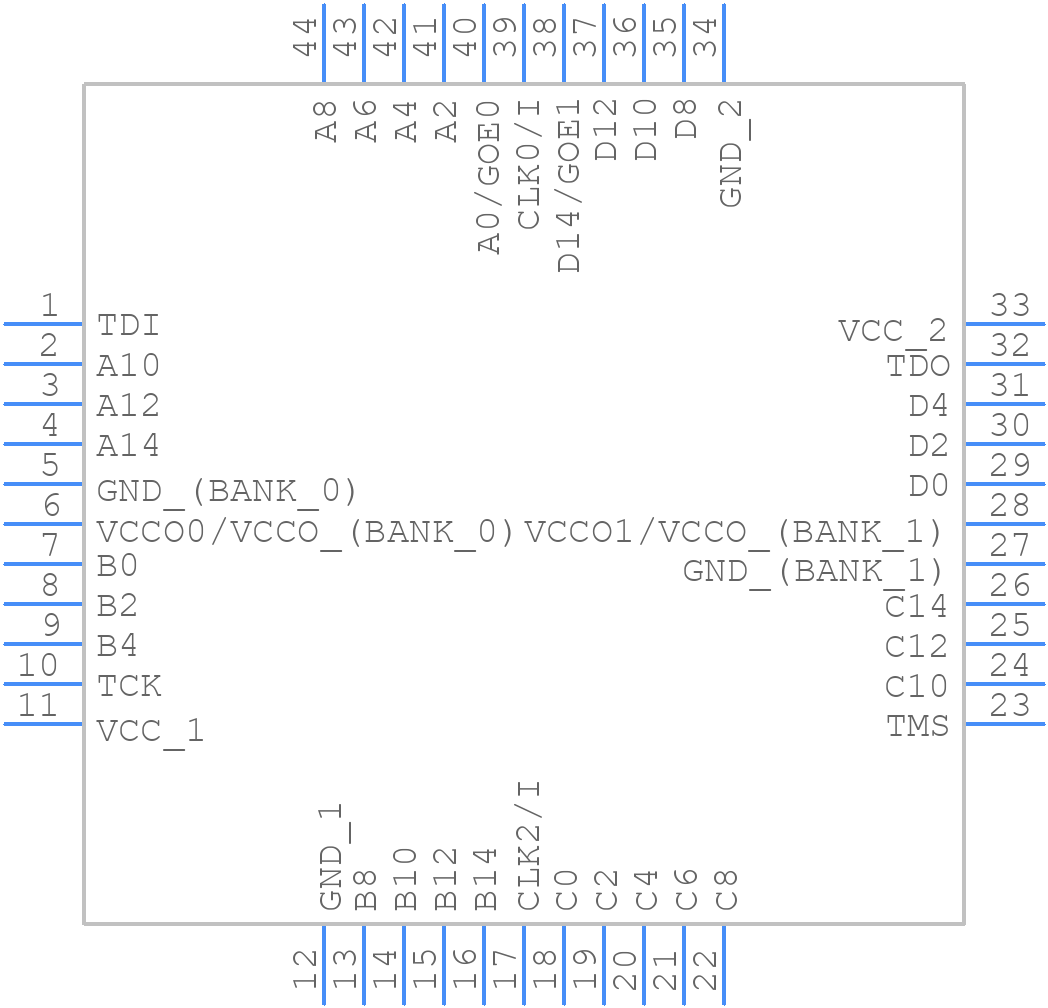

Use the download button to access the LC4064V-75TN44C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
