The recommended power-up sequence is to apply VCC first, followed by VCCIO, and then the input signals. This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
To implement a CDC in the LC4064V-75TN44I, use a synchronizer circuit or a FIFO-based CDC. The synchronizer circuit can be implemented using a pair of flip-flops, while the FIFO-based CDC requires a FIFO memory and a clock domain crossing circuit.
The maximum frequency of operation for the LC4064V-75TN44I is 75 MHz. However, the actual frequency of operation may be limited by the system clock, the complexity of the design, and the operating conditions.
To optimize the power consumption of the LC4064V-75TN44I, use power-saving features such as clock gating, power gating, and dynamic voltage and frequency scaling. Additionally, optimize the design to minimize switching activity and use low-power modes when possible.
The recommended PCB layout and routing for the LC4064V-75TN44I involves using a multi-layer PCB with a solid ground plane, separating analog and digital signals, and using controlled impedance traces for high-speed signals. Additionally, follow the guidelines for decoupling capacitors and power supply routing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC4064V-75TN44I Overview

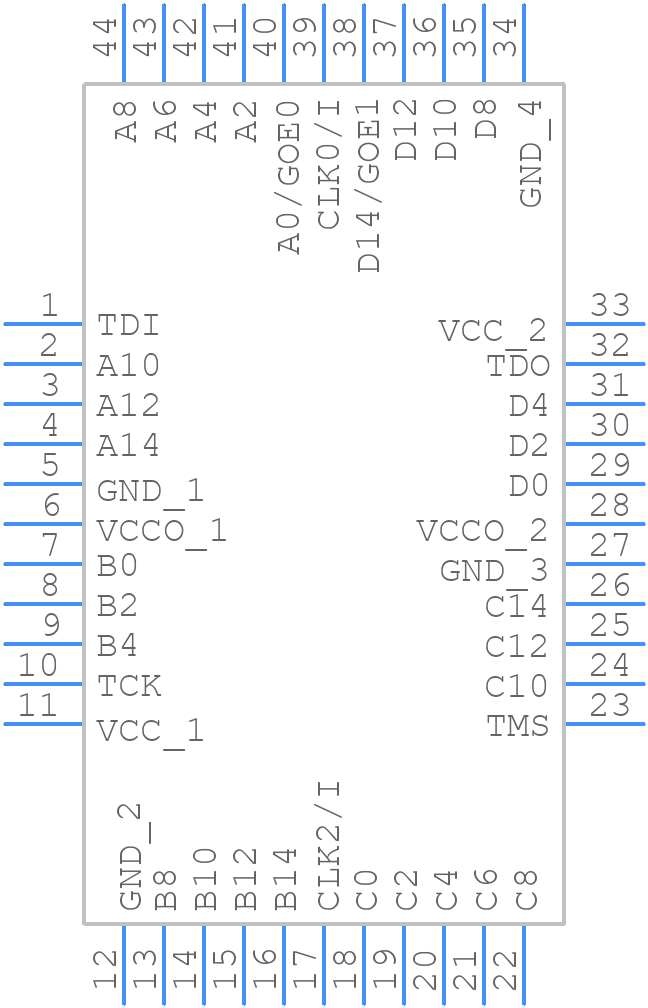

Use the download button to access the LC4064V-75TN44I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC406,
or try a keyword search, such as Programmable Logic Devices
