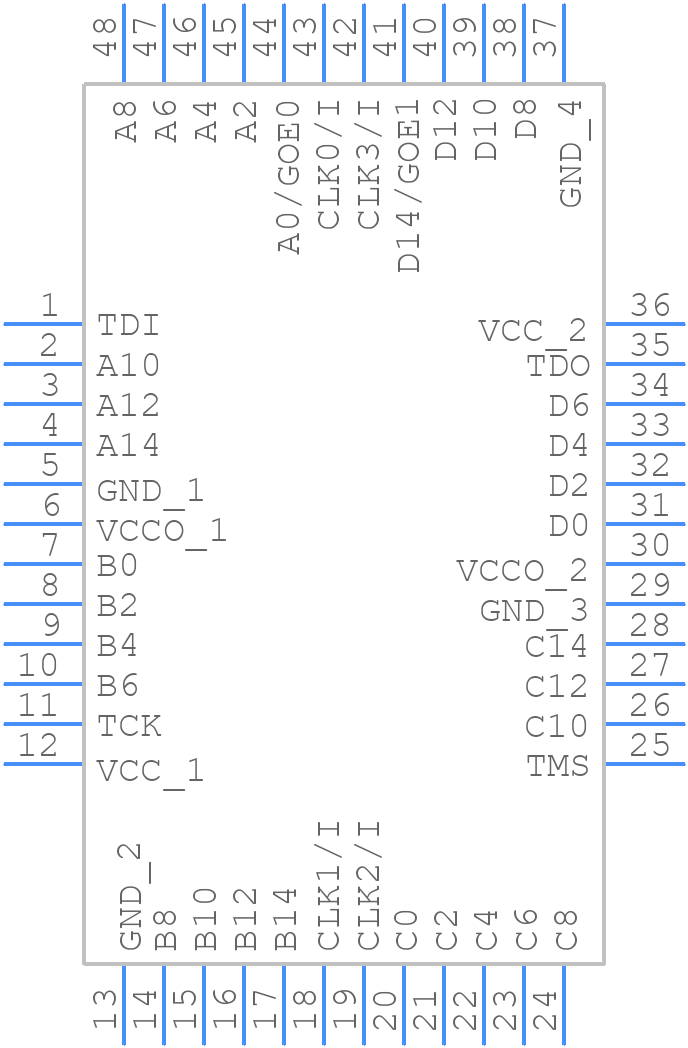

LC4064V-75TN48I - Lattice Semiconductor

LC4064V-75TN48I Details

• Manufacturer Part Number:

  LC4064V-75TN48I

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

  TQFP-48

• Pin Count:

  48

• Country Of Origin:

  Indonesia, Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  5

• Architecture:

  PAD-TYPE

• Clock Frequency-Max:

  111 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQFP-G48

• JESD-609 Code:

  e3

• JTAG BST:

  YES

• Length:

  7 mm

• Moisture Sensitivity Level:

  3

• Number of Dedicated Inputs:

  4

• Number of I/O Lines:

  32

• Number of Inputs:

  36

• Number of Macro Cells:

  64

• Number of Outputs:

  32

• Number of Product Terms:

  83

• Number of Terminals:

  48

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  4 DEDICATED INPUTS, 32 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TFQFP

• Package Equivalence Code:

  QFP48,.35SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  7.5 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7 mm
