The maximum power consumption of the LC76GPAMD module is around 2.5W, but it can vary depending on the operating mode, frequency band, and other factors. It's recommended to consult the module's AT command manual for more detailed power consumption information.
To configure the LC76GPAMD module for low power consumption, you can use AT commands to set the module to power saving mode, adjust the transmission power, and optimize the sleep mode settings. Additionally, you can also use the module's built-in power management features, such as the 'PSM' (Power Saving Mode) and 'eDRX' (extended Discontinuous Reception) features.
The maximum data transfer rate of the LC76GPAMD module is up to 300kbps for LTE-M and up to 1Mbps for NB-IoT, depending on the network and operating conditions.
The LC76GPAMD module is designed to operate in a temperature range of -40°C to +85°C, but it's recommended to consult the module's datasheet and application notes for more detailed information on temperature-related specifications and limitations.
To troubleshoot connectivity issues with the LC76GPAMD module, you can use AT commands to check the module's status, signal strength, and network registration. You can also use tools such as Quectel's proprietary 'Quectel Debug Tool' or third-party tools like 'AT Command Tester' to debug and diagnose issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LC76GPAMD Overview

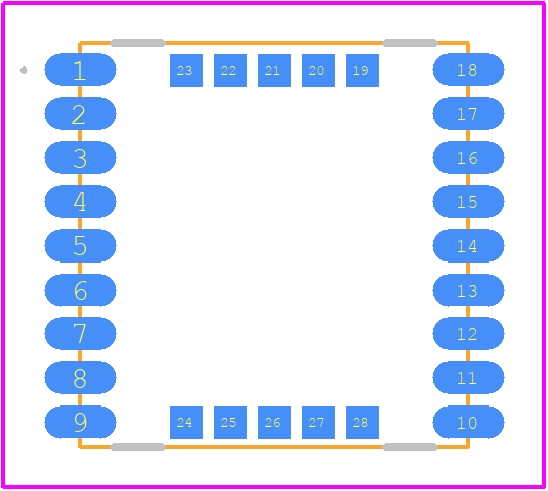

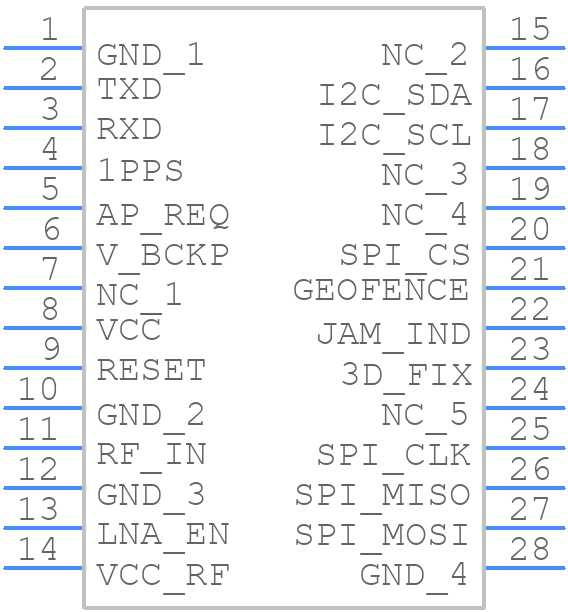

Use the download button to access the LC76GPAMD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LC76G,
or try a keyword search, such as Other Telecom ICs
