Part Image

LCMXO2-1200HC-6SG32C - Lattice Semiconductor

Description: IC FPGA 21 I/O 32QFN

Download LCMXO2-1200HC-6SG32C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

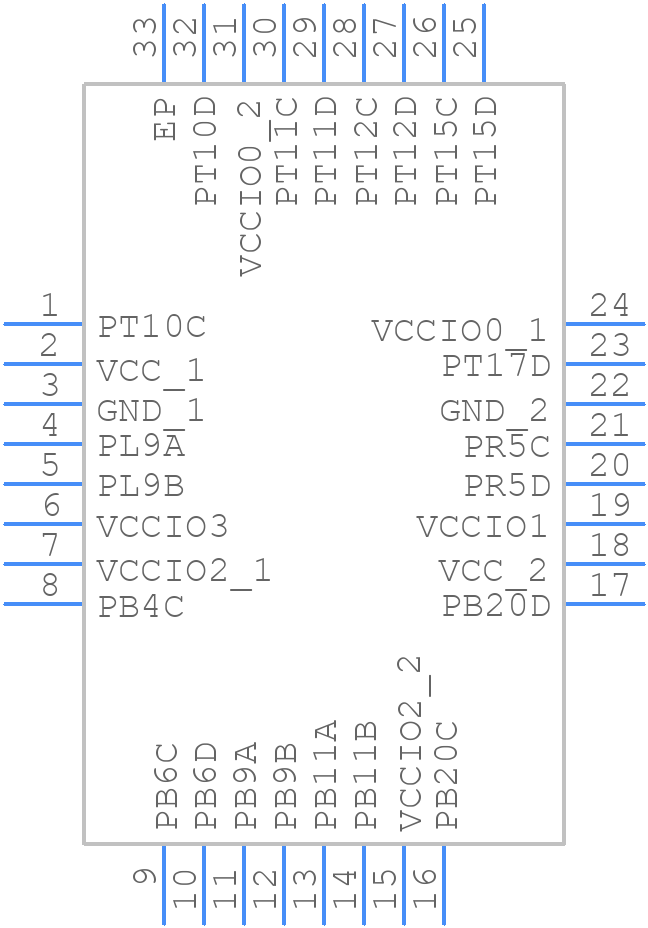

LCMXO2-1200HC-6SG32C - Lattice Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32Pin QFN Option 2 MachX02
click to zoom
3D Models
LCMXO2-1200HC-6SG32C - Lattice Semiconductor  - 3D model - Quad Flat No-Lead - 32Pin QFN Option 2 MachX02
click to zoom

LCMXO2-1200HC-6SG32C Details

  • Manufacturer Part Number:

    LCMXO2-1200HC-6SG32C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-03-11

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    131 MHz

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    160

  • Number of Inputs:

    21

  • Number of Logic Cells:

    1280

  • Number of Outputs:

    21

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Organization:

    160 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LCMXO2-1200HC-6SG32C Frequently Asked Questions (FAQs)

  • The LCMXO2-1200HC-6SG32C has an operating temperature range of -40°C to 100°C.
  • The LCMXO2-1200HC-6SG32C has a built-in clock management system that allows for the creation of a clock tree. You can use the Lattice Diamond software to implement a clock tree by defining clock domains and clock signals.
  • The PLL in the LCMXO2-1200HC-6SG32C can operate up to 400 MHz.
  • The I/O banks in the LCMXO2-1200HC-6SG32C can be configured using the Lattice Diamond software. You can specify the I/O standard, voltage, and slew rate for each bank.
  • The power consumption of the LCMXO2-1200HC-6SG32C depends on the operating frequency, voltage, and other factors. However, the typical power consumption is around 100-200 mW.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LCMXO2-1200HC-6SG32C Overview

Use the download button to access the LCMXO2-1200HC-6SG32C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO, or try a keyword search, such as Field Programmable Gate Arrays

Parts related to LCMXO2-1200HC-6SG32C

Showing 0 results

LCMXO2-1200HC-6SG32C Alternates

Showing results

Image Part Number Model
Part Image LCMXO2-1200HC-6SG32I Lattice Semiconductor Corporation

Field Programmable Gate Array, 131MHz, 1280-Cell
