Lattice Semiconductor provides a PCB Design and Layout Guide document that provides recommendations for PCB layout and routing for their FPGAs, including the LCMXO2-1200ZE-3SG32C. This document can be found on the Lattice website.
Lattice recommends following a specific power-up sequence to ensure reliable operation of the FPGA. This sequence involves powering up the core voltage (VCC) before the I/O voltage (VCCIO), and then releasing the reset signal. More details can be found in the FPGA's datasheet and user manual.
The LCMXO2-1200ZE-3SG32C has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink or thermal pad, and ensuring good airflow around the device. Lattice provides thermal management guidelines in their documentation.
Lattice provides a variety of tools and resources to help optimize FPGA performance and power consumption, including the Lattice Diamond software, which offers power analysis and optimization features. Additionally, Lattice's documentation provides guidelines for optimizing clocking, routing, and other design parameters.
The LCMXO2-1200ZE-3SG32C is a commercial-grade FPGA and is not specifically designed for radiation-tolerant or high-reliability applications. However, Lattice provides some information on the FPGA's radiation tolerance and reliability characteristics in their documentation, and can also provide additional information upon request.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-1200ZE-3SG32C Overview

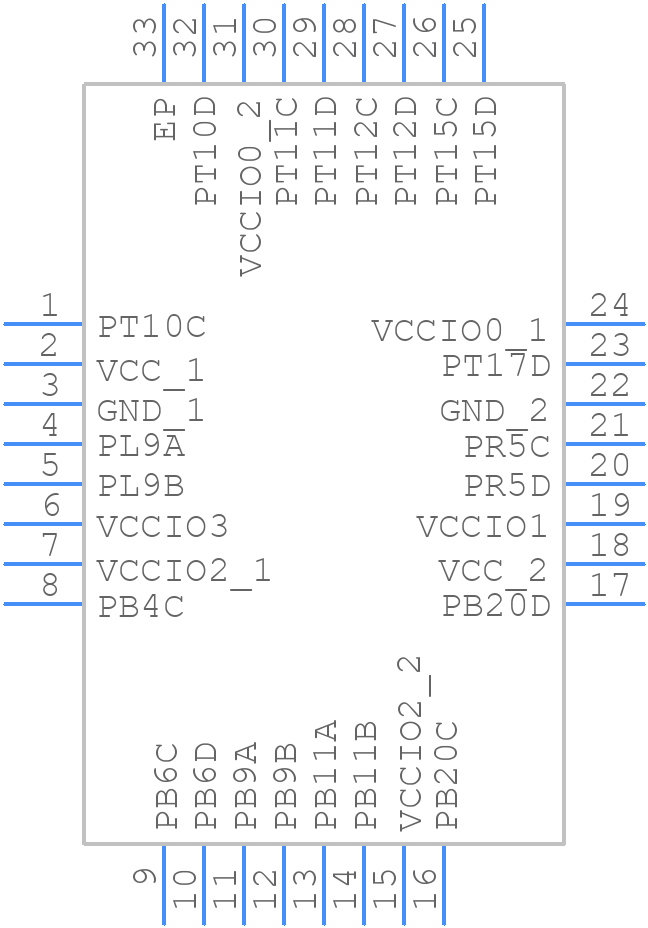

Use the download button to access the LCMXO2-1200ZE-3SG32C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO,
or try a keyword search, such as Field Programmable Gate Arrays
