LCMXO2-2000HC-6BG256C - Lattice Semiconductor

LCMXO2-2000HC-6BG256C Details

• Manufacturer Part Number:

  LCMXO2-2000HC-6BG256C

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia, Philippines, Taiwan

• ECCN Code:

  3A991.D

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  19

• Additional Feature:

  ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

• Clock Frequency-Max:

  130.5 MHz

• JESD-30 Code:

  S-PBGA-B256

• JESD-609 Code:

  e1

• Length:

  14 mm

• Moisture Sensitivity Level:

  3

• Number of Inputs:

  206

• Number of Logic Cells:

  2112

• Number of Outputs:

  206

• Number of Terminals:

  256

• Operating Temperature-Max:

  85 °C

• Organization:

  264 CLBS

• Package Body Material:

  PLASTIC/EPOXY

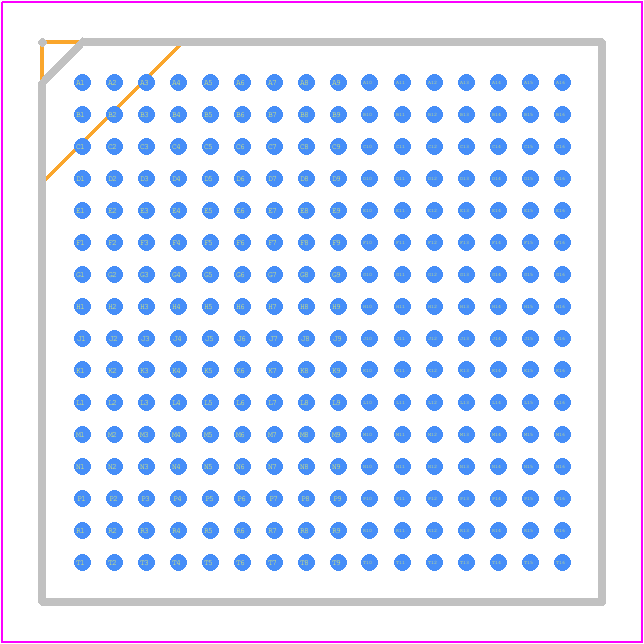

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA256,16X16,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Packing Method:

  TRAY

• Peak Reflow Temperature (Cel):

  260

• Programmable Logic Type:

  FIELD PROGRAMMABLE GATE ARRAY

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.7 mm

• Supply Voltage-Max:

  3.465 V

• Supply Voltage-Min:

  2.375 V

• Supply Voltage-Nom:

  2.5 V

• Surface Mount:

  YES

• Temperature Grade:

  OTHER

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  14 mm
