Lattice Semiconductor provides a PCB layout and routing guide for the LCMXO2 family, which includes the LCMXO2-256HC-5SG48I. The guide provides recommendations for signal integrity, power distribution, and thermal management. It's available on the Lattice website.
The LCMXO2-256HC-5SG48I has a built-in POR circuit, but it's recommended to use an external POR circuit to ensure reliable operation. Lattice provides a POR circuit design guide that includes schematics and layout recommendations.
The internal oscillator of the LCMXO2-256HC-5SG48I has a limited frequency range and accuracy. If your design requires a higher frequency or tighter frequency tolerance, it's recommended to use an external clock source. Additionally, if you need to synchronize multiple devices, an external clock source is preferred.
Lattice provides a power estimation tool that allows you to estimate the power consumption of your design based on the device utilization, clock frequency, and other factors. You can also use the tool to optimize your design for power consumption by identifying areas of high power usage.
Lattice provides a range of security features, including bitstream encryption and authentication, to protect the FPGA's configuration and IP. It's recommended to use these features in conjunction with secure programming and storage practices to prevent unauthorized access or tampering.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-256HC-5SG48I Overview

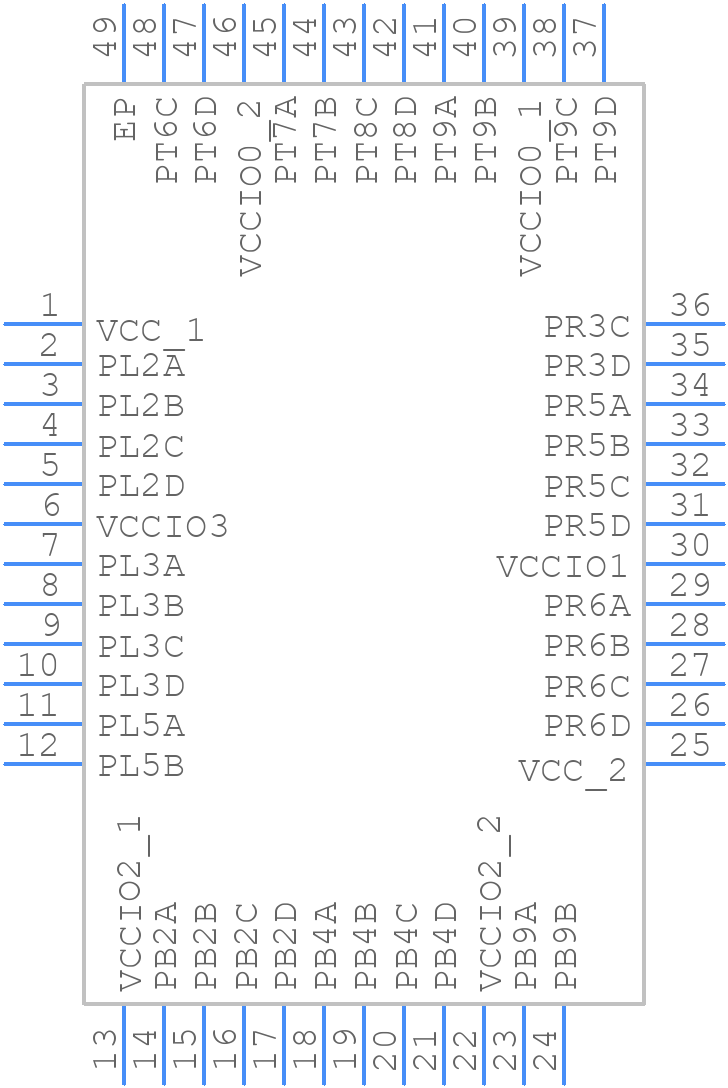

Use the download button to access the LCMXO2-256HC-5SG48I schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO,
or try a keyword search, such as Field Programmable Gate Arrays
