LCMXO2-256ZE-1SG32I - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array 256 LUTs 22 I/O 1.2V -1 Speed

Download LCMXO2-256ZE-1SG32I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

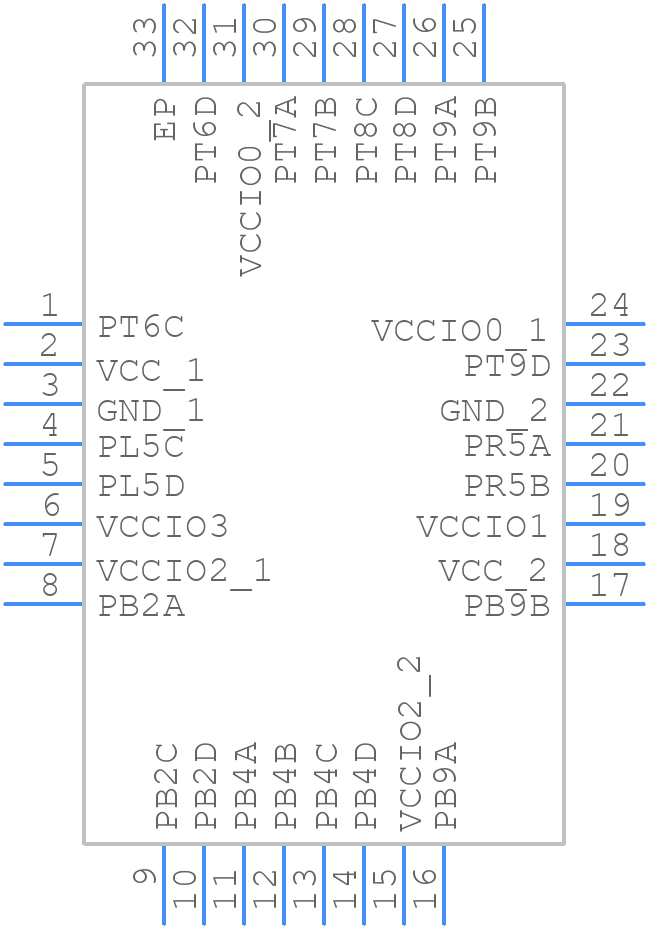

LCMXO2-256ZE-1SG32I - Lattice Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Pin QFN Package Option 2: MachXO2TM
click to zoom
3D Models
LCMXO2-256ZE-1SG32I - Lattice Semiconductor  - 3D model - Quad Flat No-Lead - 32-Pin QFN Package Option 2: MachXO2TM
click to zoom

LCMXO2-256ZE-1SG32I Details

  • Manufacturer Part Number:

    LCMXO2-256ZE-1SG32I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Clock Frequency-Max:

    93.7 MHz

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    32

  • Number of Inputs:

    21

  • Number of Logic Cells:

    256

  • Number of Outputs:

    21

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

LCMXO2-256ZE-1SG32I Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the LCMXO2-256ZE-1SG32I is 150 MHz.
  • The LCMXO2-256ZE-1SG32I has a typical power consumption of 100 mW at 1.2V and 25°C.
  • The LCMXO2-256ZE-1SG32I can be programmed using JTAG, ISP, or through the use of a programming cable.
  • No, the LCMXO2-256ZE-1SG32I is not 5V tolerant. It operates at a core voltage of 1.2V.
  • The LCMXO2-256ZE-1SG32I operates over a temperature range of -40°C to 100°C.
