Lattice provides a PCB design guide and layout recommendations in their documentation, including guidelines for signal integrity, power distribution, and thermal management. It's essential to follow these guidelines to ensure optimal performance and reliability.
To optimize power consumption, use the Lattice Power Calculator tool to estimate power consumption based on your design requirements. Additionally, implement power-saving techniques such as clock gating, voltage scaling, and dynamic voltage and frequency scaling (DVFS) in your design.
The internal oscillator has a limited frequency range and accuracy. If your design requires a higher frequency or tighter frequency tolerance, use an external clock source. Additionally, if you need to synchronize multiple devices or ensure a specific clock phase relationship, an external clock source is recommended.
Use the Lattice Diamond software to generate a reliable configuration bitstream. Ensure that the configuration interface (e.g., SPI or JTAG) is properly connected and configured. Also, follow the recommended programming and configuration procedures to prevent errors and ensure data integrity.
The LCMXO2-4000ZE-2BG256C has a maximum junction temperature of 125°C. Ensure proper thermal management by providing adequate heat dissipation through a heat sink, thermal pad, or other cooling mechanisms. Follow Lattice's thermal management guidelines to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LCMXO2-4000ZE-2BG256C Overview

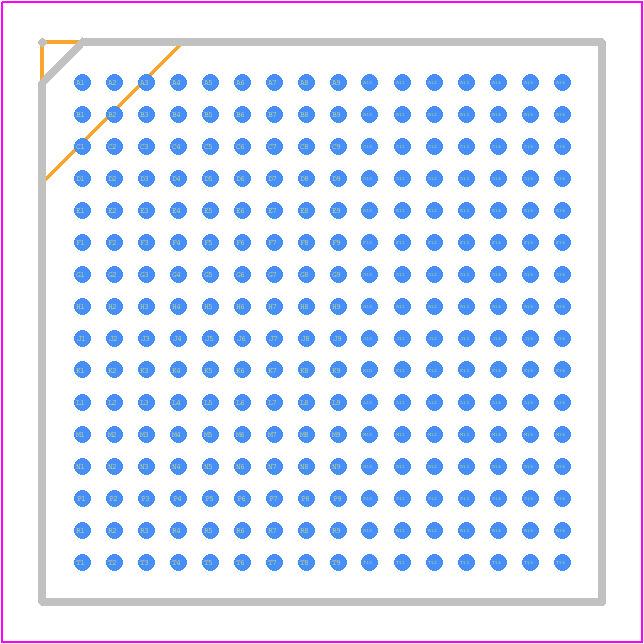

Use the download button to access the LCMXO2-4000ZE-2BG256C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LCMXO,
or try a keyword search, such as Field Programmable Gate Arrays
