LCMXO2-640HC-4SG48I - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array MachXO2 High Performance, 640 LUTs, 2.5/3.3V

Download LCMXO2-640HC-4SG48I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

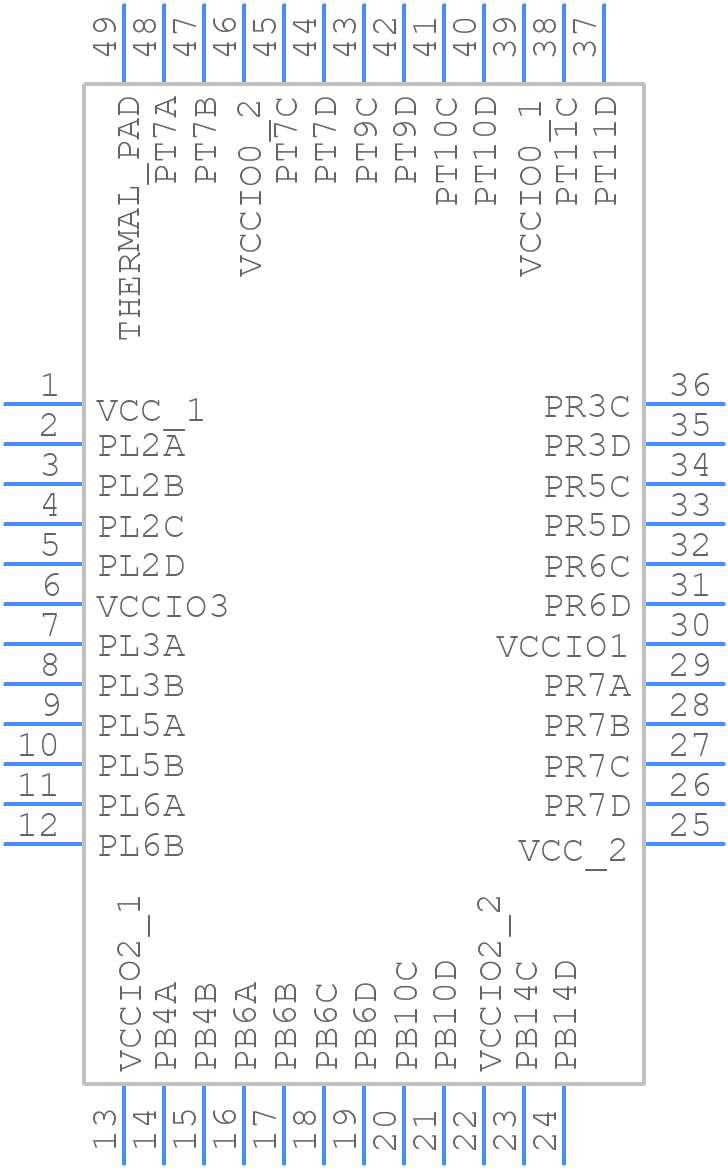

LCMXO2-640HC-4SG48I - Lattice Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 48 Pin QFN package 1
click to zoom
3D Models
LCMXO2-640HC-4SG48I - Lattice Semiconductor  - 3D model - Quad Flat No-Lead - 48 Pin QFN package 1
click to zoom

LCMXO2-640HC-4SG48I Details

  • Manufacturer Part Number:

    LCMXO2-640HC-4SG48I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-06

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    19

  • Additional Feature:

    ALSO OPERATES AT 3.3 V NOMINAL SUPPLY

  • Clock Frequency-Max:

    136.6 MHz

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of CLBs:

    80

  • Number of Inputs:

    40

  • Number of Logic Cells:

    640

  • Number of Outputs:

    40

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    80 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

LCMXO2-640HC-4SG48I Frequently Asked Questions (FAQs)

  • The LCMXO2-640HC-4SG48I has an operating temperature range of -40°C to 100°C.
  • Lattice recommends using a synchronizer or a FIFO to implement a CDC in the LCMXO2-640HC-4SG48I. The synchronizer can be implemented using a 2-stage or 3-stage synchronizer, while the FIFO can be implemented using a dual-port RAM.
  • The internal oscillator of the LCMXO2-640HC-4SG48I has a maximum frequency of 12 MHz.
  • No, the LCMXO2-640HC-4SG48I is not a radiation-hardened device and is not suitable for use in space or other high-radiation environments.
  • The I/O banks in the LCMXO2-640HC-4SG48I can be configured using the Lattice Diamond software. The software allows you to specify the voltage, current strength, and slew rate for each I/O bank.
