LDC1000EPWRQ1 - Texas Instruments

Description: 5V, High Resolution, AECQ100, Inductance to Digital Converter for Inductive Sensing Applications

Download LDC1000EPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

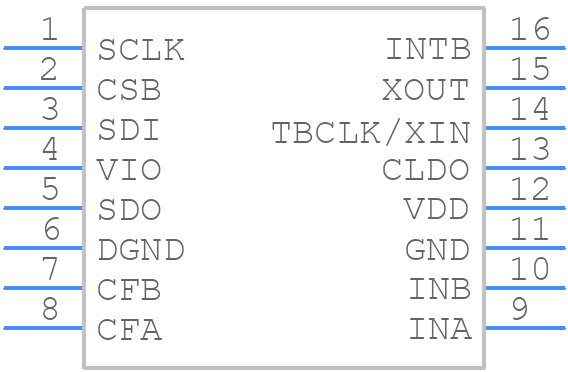

LDC1000EPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1000EPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW
click to zoom
3D Models
LDC1000EPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW
click to zoom

LDC1000EPWRQ1 Details

  • Manufacturer Part Number:

    LDC1000EPWRQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LDC1000EPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LDC1000EPWRQ1 evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
  • The LDC1000EPWRQ1 requires a one-time calibration process, which involves connecting a known inductor value to the device and using the provided calibration software to store the calibration data in the device's internal memory.
  • The LDC1000EPWRQ1 can operate up to 10 MHz, but the maximum frequency range depends on the specific application and the quality of the inductor being measured. In general, the device is optimized for frequencies up to 1 MHz.
  • Yes, the LDC1000EPWRQ1 is capable of measuring inductors with high Q values, but the accuracy may be affected at very high Q values. It's recommended to consult the datasheet and application notes for guidance on measuring high-Q inductors.
  • The LDC1000EPWRQ1 has built-in compensation for parasitic capacitance, which can be adjusted using the device's internal registers. Additionally, the device provides a capacitance measurement mode to help characterize the parasitic capacitance in the measurement circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1000EPWRQ1 Overview

Use the download button to access the LDC1000EPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC10, or try a keyword search, such as Other Signal Circuits
