LDC1000NHRR - Texas Instruments

Description: 5V, High Resolution, Inductance to Digital Converter for Inductive Sensing Applications

Download LDC1000NHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

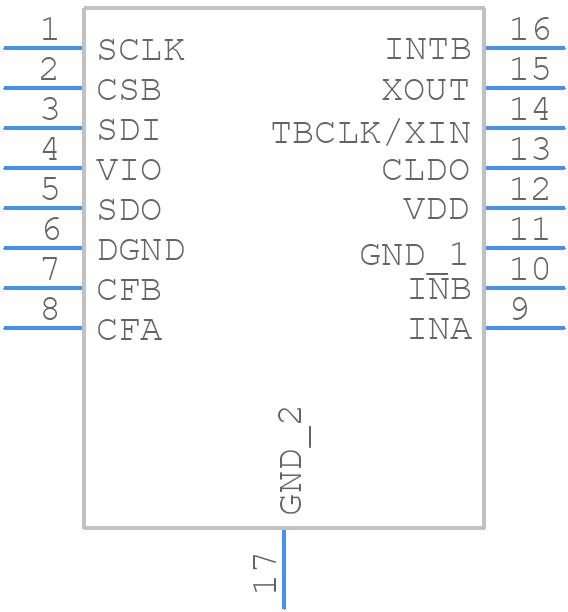

Symbol
LDC1000NHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1000NHRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - LDC1000NHRR
click to zoom
3D Models
LDC1000NHRR - Texas Instruments - 3D model - Small Outline No-lead - LDC1000NHRR
click to zoom

LDC1000NHRR Details

  • Manufacturer Part Number:

    LDC1000NHRR

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    WSON-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1000NHRR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LDC1000NHRR evaluation module (EVM) user's guide. It's essential to follow this layout to ensure optimal performance and minimize noise.
  • The LDC1000NHRR does not require calibration. It has an internal calibration mechanism that ensures accurate measurements. However, it's essential to follow the recommended PCB layout and decoupling to ensure optimal performance.
  • The LDC1000NHRR can operate up to 100 kHz, but the maximum frequency depends on the specific application and the resonant frequency of the coil. It's essential to consult the datasheet and application notes for more information.
  • Yes, the LDC1000NHRR can be used with non-TI coils, but it's essential to ensure the coil meets the recommended specifications and is compatible with the LDC1000NHRR. Consult the datasheet and application notes for more information.
  • The LDC1000NHRR has a digital interface that can be connected to a microcontroller. Consult the datasheet and application notes for more information on the interface protocol and pin connections.
