LDC1000NHRT - Texas Instruments

Description: LDC1000NHRT, Inductance to Digital Converter, 4.75 to 5.25 V 16-Pin WSON

Download LDC1000NHRT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

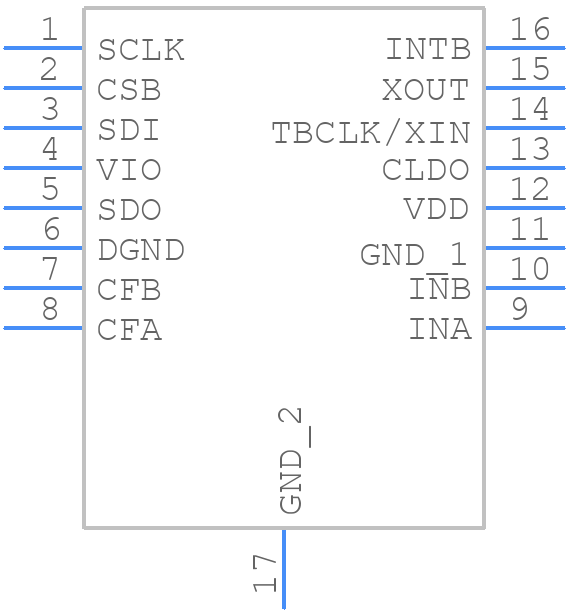

LDC1000NHRT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1000NHRT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHR-
click to zoom
3D Models
LDC1000NHRT - Texas Instruments - 3D model - Small Outline No-lead - NHR-
click to zoom

LDC1000NHRT Details

  • Manufacturer Part Number:

    LDC1000NHRT

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SON

  • Package Description:

    WSON-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1000NHRT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LDC1000NHRT evaluation module (EVM) user's guide. It's essential to follow this layout to ensure optimal performance and minimize noise.
  • The LDC1000NHRT does not require calibration. It has an internal calibration mechanism that ensures accurate measurements. However, it's essential to follow the recommended PCB layout and decoupling to minimize noise and ensure accurate readings.
  • The LDC1000NHRT can operate up to 100 kHz, but the maximum frequency depends on the specific application and the resonant frequency of the coil. It's essential to consult the datasheet and application notes for more information.
  • Yes, the LDC1000NHRT can be used with non-TI coils, but it's essential to ensure the coil meets the recommended specifications and is compatible with the LDC1000NHRT. Consult the datasheet and application notes for more information.
  • The LDC1000NHRT has a digital interface that can be connected to a microcontroller using SPI or I2C protocols. Consult the datasheet and application notes for more information on interfacing the LDC1000NHRT with a microcontroller.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1000NHRT Overview

Use the download button to access the LDC1000NHRT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC10, or try a keyword search, such as Other Signal Circuits
