Part Image

LDC1001EPWRQ1 - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialised Automotive, 5V, grade-0, Inductance to Digital Converter 16-TSSOP -40 to 150

Download LDC1001EPWRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

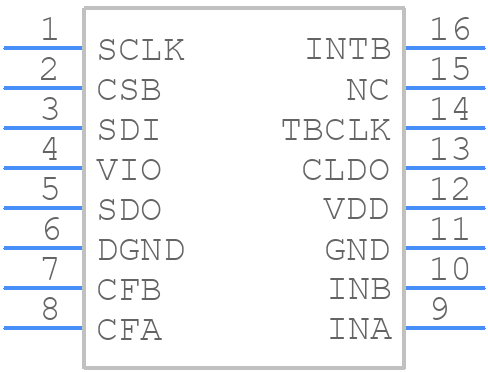

Symbol
LDC1001EPWRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1001EPWRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A
click to zoom
3D Models
LDC1001EPWRQ1 - Texas Instruments - 3D model - Small Outline Packages - PW0016A
click to zoom

LDC1001EPWRQ1 Details

  • Manufacturer Part Number:

    LDC1001EPWRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-11-16

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LDC1001EPWRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the LDC1001EPWRQ1 evaluation module user's guide, which includes guidelines for component placement, routing, and grounding to ensure optimal performance and minimize noise.
  • The LDC1001EPWRQ1 does not require calibration in the classical sense, but it does require a one-time initialization process to set the internal registers. This process is described in the datasheet and involves writing specific values to the device's registers to configure the sensor and set the desired measurement range.
  • The maximum frequency of the clock input (CLKIN) is 20 MHz, as specified in the datasheet. However, it's recommended to use a clock frequency between 1 MHz and 10 MHz for optimal performance.
  • Yes, the LDC1001EPWRQ1 can operate with a 3.3V power supply, but it's recommended to use a 1.8V power supply for optimal performance and to ensure that the device operates within its specified operating conditions.
  • The LDC1001EPWRQ1 has a built-in POR and BOR circuitry that resets the device during power-up or when the supply voltage drops below a certain threshold. To handle these events, it's recommended to use an external reset circuit or a microcontroller to monitor the device's reset pin and take appropriate action when a reset event occurs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1001EPWRQ1 Overview

Use the download button to access the LDC1001EPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC10, or try a keyword search, such as Other Signal Circuits
