LDC1001NHRR - Texas Instruments

Description: Data Acquisition ADCs/DACs - Specialized 5V, 16-bit Rp, 24-bit L resolution, inductance to digital converter 16-WSON -40 to 125

Download LDC1001NHRR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

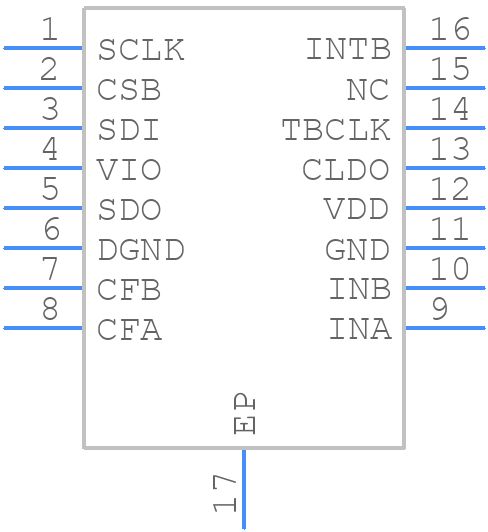

LDC1001NHRR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1001NHRR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - NHR-
click to zoom
3D Models
LDC1001NHRR - Texas Instruments - 3D model - Small Outline No-lead - NHR-
click to zoom

LDC1001NHRR Details

  • Manufacturer Part Number:

    LDC1001NHRR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-11-23

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1001NHRR Frequently Asked Questions (FAQs)

  • A good PCB layout for the LDC1001NHRR involves keeping the sensitive analog signals away from the digital signals, using a solid ground plane, and minimizing the length of the traces connected to the sensor pins. TI provides a recommended PCB layout in the application note SLAA655.
  • The LDC1001NHRR requires a one-time calibration process to set the gain and offset of the sensor. This can be done using the TI-provided calibration software or by implementing a custom calibration routine using the device's built-in calibration registers.
  • The maximum frequency of the clock input for the LDC1001NHRR is 20 MHz. However, the recommended clock frequency is 10 MHz to ensure optimal performance.
  • Yes, the LDC1001NHRR can be used with a non-invasive sensor coil, but the coil design and layout may require modifications to achieve optimal performance. TI provides guidelines for designing non-invasive sensor coils in the application note SLAA656.
  • The LDC1001NHRR has built-in temperature compensation, but it may require additional external circuitry to achieve optimal performance. TI provides guidelines for temperature compensation in the application note SLAA657.
