Texas Instruments provides a recommended PCB layout in the LDC1312QDNTRQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
Calibration involves adjusting the device's internal registers to compensate for variations in the sensor and PCB layout. Texas Instruments provides a calibration procedure in the LDC1312QDNTRQ1 datasheet, which involves measuring the sensor's output with a known inductor and adjusting the registers accordingly.
The LDC1312QDNTRQ1 can operate up to 100 kHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. It's recommended to consult the datasheet and application notes for guidance on frequency selection.
Yes, the LDC1312QDNTRQ1 can be used to measure inductance in a multi-coil configuration, but it requires additional external circuitry and programming to configure the device for multi-coil operation. Consult the datasheet and application notes for more information.
To minimize noise and interference, use proper PCB layout techniques, such as separating analog and digital signals, using ground planes, and adding noise filters. Additionally, consider using shielding and guarding techniques to reduce electromagnetic interference (EMI).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LDC1312QDNTRQ1 Overview

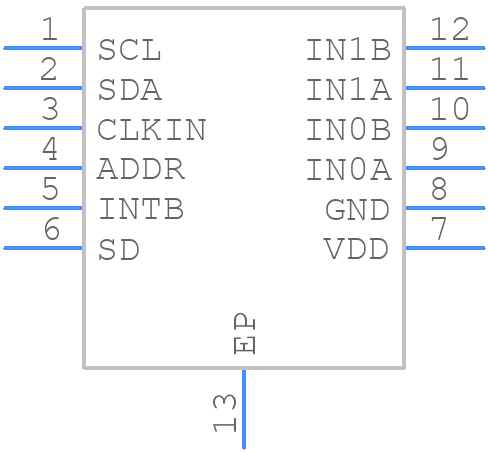

Use the download button to access the LDC1312QDNTRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC13,
or try a keyword search, such as Other Signal Circuits
