LDC1314QRGHRQ1 - Texas Instruments

Description: 4-channel, AEC-Q100 qualified, 12-bit Inductance-to-Digital Converter with I2C for Inductive Sensing

Download LDC1314QRGHRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

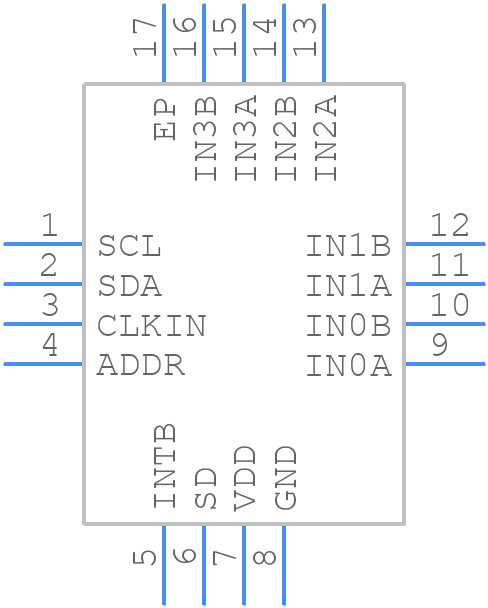

LDC1314QRGHRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1314QRGHRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGH0016A-
click to zoom
3D Models
LDC1314QRGHRQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - RGH0016A-
click to zoom

LDC1314QRGHRQ1 Details

  • Manufacturer Part Number:

    LDC1314QRGHRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Number of input channels : 4

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1314QRGHRQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The layout should also minimize the distance between the LDC1314QRGHRQ1 and the sensing coils to reduce noise and improve performance.
  • Calibration involves adjusting the gain and offset of the device to match the specific coil and measurement setup. This can be done by measuring a known inductance value and adjusting the gain and offset registers accordingly.
  • The maximum frequency of operation for the LDC1314QRGHRQ1 is 1 MHz, but it can be limited by the specific application and coil design. It's recommended to consult the datasheet and application notes for more information.
  • Noise and interference can be minimized by using proper PCB layout techniques, shielding, and filtering. Additionally, the LDC1314QRGHRQ1 has built-in noise reduction features such as averaging and filtering that can be enabled to improve measurement accuracy.
  • Yes, the LDC1314QRGHRQ1 can be used for mutual inductance measurements by connecting the coils in a differential configuration and using the device's built-in differential measurement mode.
