LDC1314QRGHTQ1 - Texas Instruments

Description: 4-channel, AEC-Q100 qualified, 12-bit Inductance-to-Digital Converter with I2C for Inductive Sensing

Download LDC1314QRGHTQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

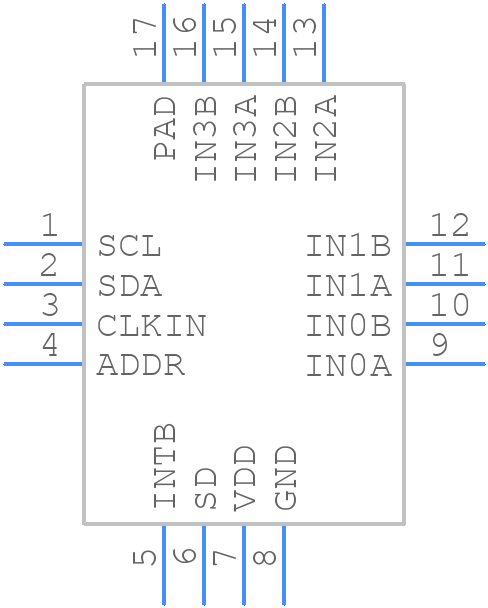

Symbol
LDC1314QRGHTQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LDC1314QRGHTQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LDC1314QRGHTQ1
click to zoom
3D Models
LDC1314QRGHTQ1 - Texas Instruments - 3D model - Quad Flat No-Lead - LDC1314QRGHTQ1
click to zoom

LDC1314QRGHTQ1 Details

  • Manufacturer Part Number:

    LDC1314QRGHTQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2016-05-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Number of input channels : 4

  • Converter Type:

    INDUCTANCE TO DIGITAL CONVERTER

  • JESD-30 Code:

    S-PQCC-N16

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LDC1314QRGHTQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLAU522, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure accurate measurements.
  • Calibration involves adjusting the internal registers to compensate for variations in the device and the PCB. TI provides a calibration procedure in the datasheet, which involves measuring the device's output with a known inductor and adjusting the registers accordingly.
  • The LDC1314QRGHTQ1 can operate up to 100 kHz, but the maximum frequency depends on the specific application and the inductor being measured. TI recommends consulting the datasheet and application notes for guidance on frequency selection.
  • Yes, the LDC1314QRGHTQ1 is designed to measure inductors with high Q factors. However, the device's accuracy may be affected by the Q factor, and TI recommends consulting the datasheet and application notes for guidance on measuring high-Q inductors.
  • The LDC1314QRGHTQ1 has a digital interface that can be connected to a microcontroller using SPI or I2C protocols. TI provides example code and interface guidelines in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LDC1314QRGHTQ1 Overview

Use the download button to access the LDC1314QRGHTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LDC13, or try a keyword search, such as Other Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
